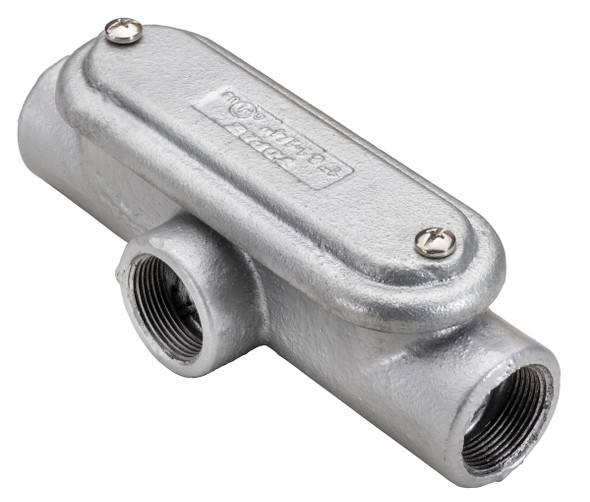

The Garvin Industries MT4CGHDG is a robust 1-1/4" T-type mogul conduit body, designed for demanding electrical applications. Crafted from hot dip galvanized malleable iron, this conduit body comes complete with a raised cover, neoprene gasket, and stainless steel screws, ensuring durability and a secure fit in wet locations. It offers generous internal volume for easy wire pulling, splicing, and maintenance, making it a trusted choice for both straight and 90° angle conduit runs.

Key Features and Benefits

• Hot dip galvanized malleable iron for superior corrosion resistance
• Includes cover, gasket, and stainless steel screws for a complete, weather-resistant assembly
• Threaded NPT tapered hubs fit rigid and IMC conduit
• Smooth, integral hub bushings protect conductor insulation
• cULus listed for wet locations and meets NEMA 3R requirements
• Large internal volume (25 in³) for easy wire pulling and splicing

Specifications

• Size: 1-1/4"
• Material: Malleable iron, hot dip galvanized
• Gasket: Neoprene rubber
• Cover Screws: Stainless steel
• Max. number of conductors: 3
• Max. wire size: 2 AWG
• Internal volume: 25 in³
• Certifications: UL 514A, UL 514D, NEMA 3R, Fed. Spec W-C-586D, A-A-50563

Common Uses

Ideal for commercial and industrial conduit installations, especially where large conductors or frequent wire access is needed, such as in pull outlets, splicing, and making taps in wet or outdoor environments.
