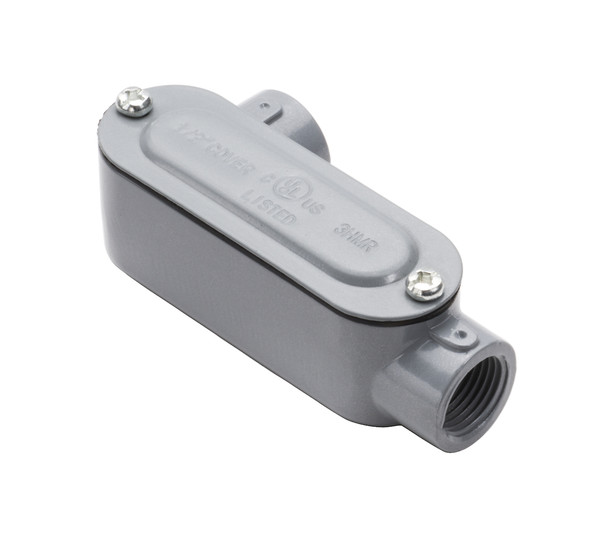

The Garvin Industries LL3CG is a 1" rigid conduit body, LL type, designed for easy access to conductors for pulling, splicing, and maintenance. This model features three threaded NPT hubs and comes complete with a cover and neoprene gasket, ensuring a secure and weather-resistant installation. Built from copper-free aluminum die cast and finished with a durable powder coat, it is ideal for use in both wet locations and concrete applications.

Key Features and Benefits

• Three threaded NPT hubs for versatile conduit connections
• Includes stamped steel cover and neoprene rubber gasket for a tight seal
• Powder-coated, corrosion-resistant finish for long-lasting durability
• UL listed and meets NEMA FB 1 and Fed. Spec. W-C-586D standards
• Suitable for use in wet locations and concrete installations
• Allows easy access for conductor pulling, splicing, and maintenance

Specifications

• Hub Size: 1"
• Number of Hubs: 3
• Material: Copper-free aluminum die cast
• Finish: Powder coat
• Cover: Stamped steel
• Gasket: Neoprene rubber
• UL Standard: 514A
• NEMA FB 1 compliant
• Fed. Spec. W-C-586D compliant
• Dimensions: 5.915" (A) x 1.90" (B) x 2.65" (C)

Common Uses

Ideal for commercial, industrial, and residential conduit installations where access to conductors is needed, especially in wet or concrete environments.
