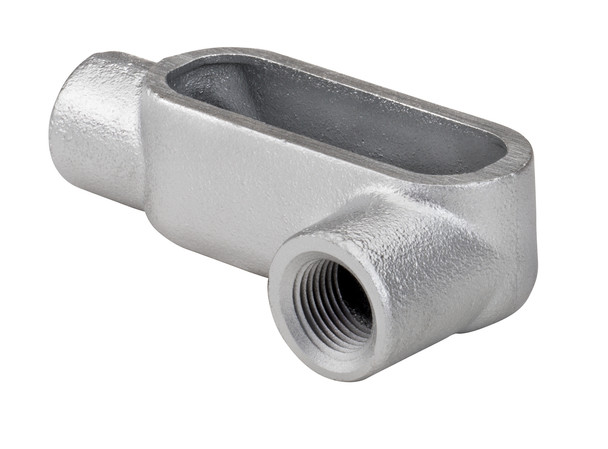

The Garvin Industries LL1G7 is a 1/2 inch LL Type Form 7 rigid conduit body, designed to provide a reliable pull outlet for conductors during installation. Built from durable gray iron and finished with a zinc-plated, eco-friendly coating, this conduit body offers superior corrosion resistance and is highly resistant to solvents, fuels, and acids. Its raintight construction and suitability for hazardous locations make it a versatile choice for demanding environments.

Key Features and Benefits

• NPT tapered hubs for secure conduit connections
• Raintight (NEMA 3R) when installed with cover and gasket
• Approved for Class 1 Div.2 hazardous locations per NEC 2014
• Eco-friendly, corrosion-resistant finish for long-lasting durability
• Tested to ASTM B117 for 200+ hours salt spray resistance
• UL listed and NEMA FB 1 compliant

Specifications

• Size: 1/2 inch
• Material: Gray iron
• Finish: Zinc plated, eco-friendly coating
• Internal volume: 3.8 in³
• Certifications: UL 514A, UL 514D, Fed. Spec A-A-50563, NEMA FB 1
• Dimensions: 4.50" (A) x 2.30" (B) x 1.40" (C)

Common Uses

Ideal for commercial, industrial, and residential conduit installations where a pull outlet is needed, especially in outdoor or hazardous locations.
