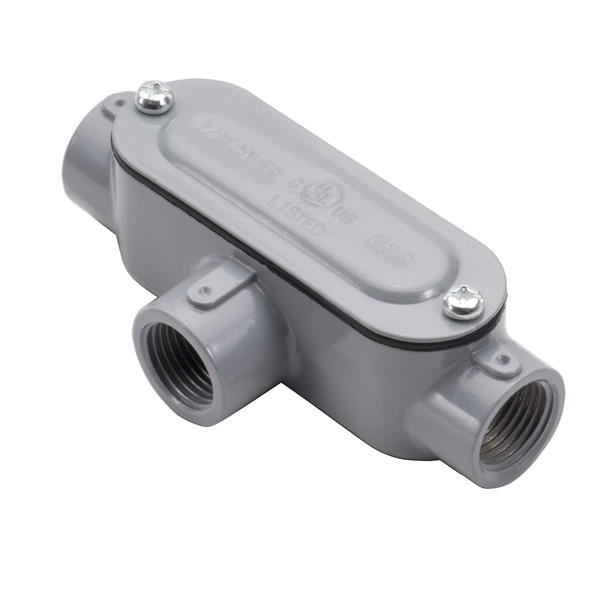

The Garvin Industries T8CG is a robust 3" threaded T type rigid conduit body, designed for easy access to conductors for pulling, splicing, and maintenance. It features a durable copper-free aluminum die cast construction with a powder coat finish, and comes complete with a stamped steel cover and neoprene gasket for reliable performance in wet or concrete environments.

Key Features and Benefits

• Threaded T type design for versatile conduit runs
• Includes cover and gasket for moisture protection
• Copper-free aluminum body for corrosion resistance
• Suitable for wet locations and concrete installations
• NPT tapered hubs for secure connections
• Powder coat finish for added durability
• UL listed and meets NEMA FB 1 standards

Specifications

• Hub Size: 3"
• Number of Hubs: 3
• Max Wire Size: 250 MCM
• Material: Copper-free aluminum (body), stamped steel (cover), neoprene (gasket)
• Finish: Powder coat
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 13.50" (A) x 4.685" (B) x 5.825" (C)

Common Uses

Ideal for commercial and industrial electrical installations, especially where access to conductors is needed for pulling, splicing, or maintenance in wet or concrete environments.
