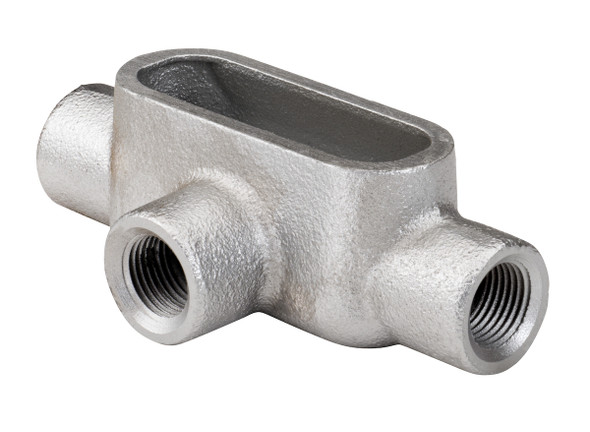

The Garvin Industries T8G7 is a robust 3" T type Form 7 rigid conduit body designed for demanding electrical installations. Built with gray iron and finished with a superior eco-friendly corrosion resistant coating, this conduit body ensures long-lasting performance in harsh environments. Its NPT tapered hubs and raintight construction make it suitable for both indoor and outdoor applications, including hazardous locations when installed per NEC guidelines.

Key Features and Benefits

• Durable gray iron construction for strength and longevity
• NPT tapered hubs ensure secure, leak-resistant connections
• Raintight and NEMA 3R rated for outdoor use
• Certified for use in Class 1 Div.2 hazardous locations
• Eco-friendly, corrosion-resistant zinc finish
• Large 119in³ internal volume for easy wire pulling and splicing
• Accommodates up to 3 conductors of 2/0 AWG
• UL 514A/514B and NEMA FB 1 certified for safety and reliability

Specifications

• Hub Size: 3"
• Max Number of Conductors: 3
• Max Conductor Size: 2/0 AWG
• Internal Volume: 119 in³
• Material: Gray iron
• Finish: Zinc plated, corrosion resistant
• Certifications: UL 514A/514B, NEMA FB 1, Fed. Spec: A-A-50563
• Dimensions: 12.40" x 5.80" x 4.40"

Common Uses

Ideal for commercial and industrial electrical installations as a pull outlet for conductors, especially where durability and corrosion resistance are required. Suitable for hazardous locations and outdoor environments.
