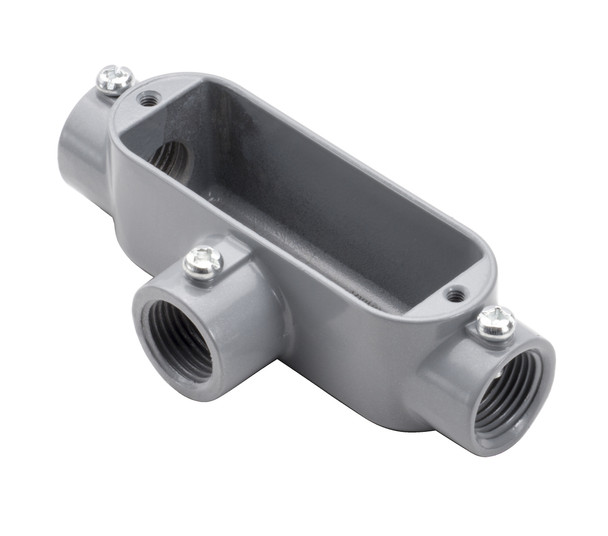

The Garvin Industries T1SS is a 1/2" EMT and rigid combination conduit body, designed in a T type configuration. This versatile fitting provides easy access to conductors for pulling, splicing, and maintenance, making it an essential solution for electrical installations in demanding environments.

Key Features and Benefits

• Combination T type for flexible conduit layouts
• NPT tapered hubs ensure secure connections
• Suitable for use in concrete and wet locations
• Constructed from durable, copper-free aluminum
• Powder-coated finish for added protection
• UL listed and NEMA FB 1 rated for safety and reliability
• Accommodates up to 6 AWG wire

Specifications

• Size: 1/2"
• Material: Copper-free aluminum die cast
• Finish: Powder coat
• Certification: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 5.35" (A) x 1.31" (B) x 2.02" (C)
• Max Wire Size: 6 AWG

Common Uses

Ideal for commercial, industrial, and residential conduit installations, especially where access to conductors is needed for pulling, splicing, or maintenance in wet or concrete environments.
