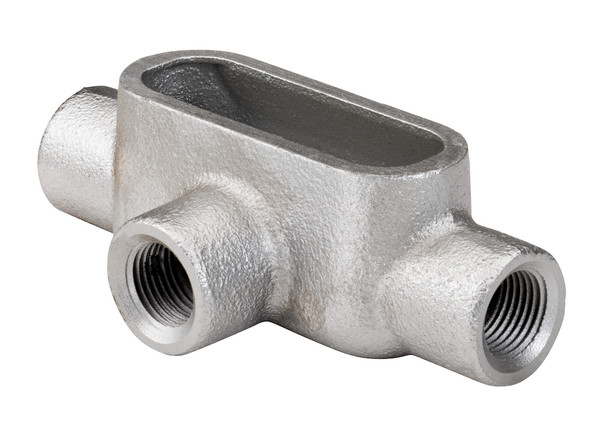

The Garvin Industries T7G7 is a robust T Type Form 7 rigid conduit body designed for 2-1/2" conduit systems. Engineered for durability and safety, it features gray iron construction and an eco-friendly zinc-plated finish, making it highly resistant to corrosion, solvents, fuels, and acids. This conduit body is raintight when installed with a cover and gasket, and is suitable for hazardous locations when installed per NEC 2014 501.10(B)(4). Certified to UL 514A and UL 514B standards, it's a reliable choice for demanding electrical installations.

Key Features and Benefits

• Heavy-duty gray iron body for long-lasting performance
• Eco-friendly zinc plating for superior corrosion resistance
• NPT tapered hubs ensure secure connections
• NEMA 3R raintight when installed with cover and gasket
• Suitable for Class 1 Div.2 hazardous locations
• Tested to ASTM B117 for 200+ hour salt spray resistance
• UL and Fed. Spec certified for safety and reliability

Specifications

• Size: 2-1/2"
• Max Number of Conductors: 3
• Max Conductor Size: 2/0 AWG
• Internal Volume: 95.8 in³
• Material: Gray iron
• Finish: Zinc plated, eco-friendly coating
• Certifications: UL 514A, UL 514B, NEMA FB 1, Fed. Spec A-A-50563
• Dimensions: 12.40" (A) x 5.80" (B) x 3.70" (C)

Common Uses

Ideal for commercial, industrial, and hazardous location conduit installations where a pull outlet or directional change is required.
