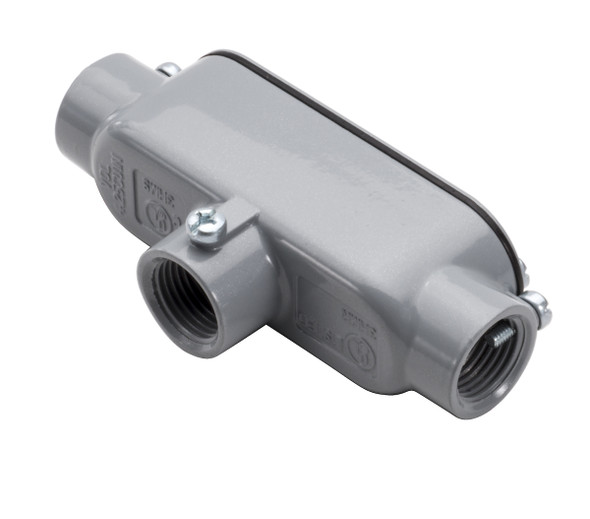

The Garvin Industries TB6SSCG is a 2" EMT and rigid combination conduit body, designed to provide easy access to conductors for pulling, splicing, and maintenance. This robust conduit body is a key solution for demanding electrical installations, especially where durability and reliability are essential.

Key Features and Benefits

• Combination TB type with included cover and neoprene gasket for a secure seal
• NPT tapered hubs ensure tight, reliable connections
• Rated for wet locations and suitable for use in concrete installations
• Constructed from copper-free aluminum die cast for corrosion resistance
• Powder coat finish enhances durability and longevity
• UL 514A and NEMA FB 1 certified for safety and performance
• Accommodates up to 2/0 AWG wire for large capacity needs

Specifications

• Trade Size: 2"
• Number of Hubs: 3
• Max Wire Size: 2/0 AWG
• Material: Copper-free aluminum die cast body, stamped steel cover, neoprene gasket
• Finish: Powder coat
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 11.50" (A) x 3.29" (B) x 4.25" (C)

Common Uses

Ideal for commercial and industrial electrical installations, especially in wet or concrete environments where access to conductors for maintenance or splicing is required.
