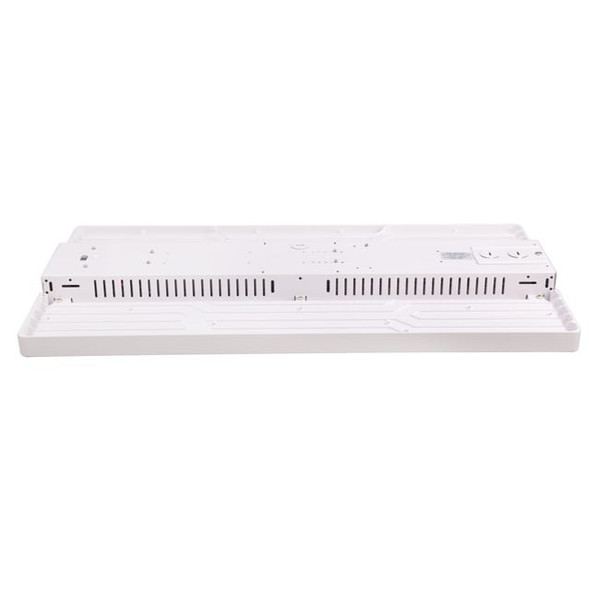

The ProLED Essential Compact Linear High Bay Series is a standout in Halco Lighting's lineup, offering a blend of affordability and reliability for industrial and warehouse lighting needs. With its compact design, it reduces shipping costs and installation time, making it an ideal choice for both retrofit and new construction projects.
Key Features and Benefits
- Compact design to reduce shipping costs and installation time
- High performance with lumen output ranging from 15,000 to 31,000 lumens
- Operates efficiently in ambient temperatures up to 50°C
- Frosted acrylic lens to eliminate glare
- Die-cast aluminum housing for durability
- Options for chain and V hook mount, wire guard, pendant mount, and surface mount
- Optional stepdown transformer and battery backup
Specifications
- 5000K CCT
- 136+ lumens per watt efficacy
- 80+ CRI
- L70 lumen maintenance of 50,000 hours
- 0-10V dimming capability
- 120-277VAC input voltage
- 5-year limited warranty
- Certifications: DLC 5.1 Premium, cULus, UL, ROHS compliant, FCC
- Environmental Rating: IP20, UL Damp Location
Common Uses
Ideal for light-duty industrial and warehouse applications, suitable for both retrofit and new construction projects.
RESOURCES AND DOWNLOADS
| SKU | HLT-ECLHB-220-50 |
|---|---|
| Weight | 10.00 LBS |
| Lumen Output | 29,920 |
| Total Input Watts | 220W |
| Voltage | 277-480VAC |
| Color Temperature (CCT) | 5000K |
| Color Rendering Index (CRI) | 80+ |
