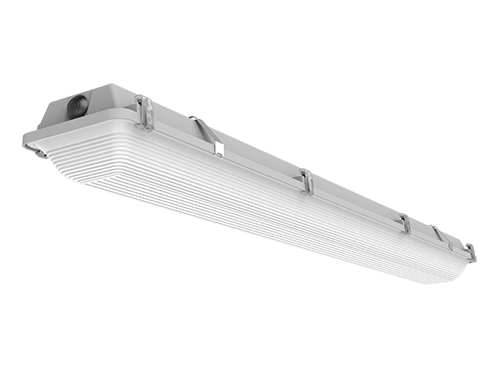

The Industrial Lighting Products HZV Series 4ft Hazardous Location Linear Vapor Tight fixture is designed for extreme environments. This robust, narrow body fixture offers high efficacy and versatile mounting options, making it ideal for demanding applications.
Key Features and Benefits
- Robust Hazardous Location Narrow Body Linear Vapor Tight
- Class 1 Div 2 Groups A, B, C & D
- Class 1 Zone 2 Groups IIA, IIB+H2, IIC
- UL844 Hazardous
- High efficacy up to 156 lm/W
- Ambient Range -40°F to 131°F
- Lumen packages ranging from 2,000 to 24,000
- Fiberglass body with T4 housing ignition temperature rated
- IP65, IP66 & IP67, NEMA4X, NSF
- CCT 5000K
- Color Rendering Index (CRI) >80
- Calculated L70 >100,000 hours
- 0-10V dimmable driver (100%-10%)
- 5-year warranty
- ETL listed for wet locations
- DesignLights Consortium® Premium Qualified Luminaire
Specifications
- 5000K color temperature
- 3,034 lumens
- 21 watts
- 120-277V universal voltage
- Ribbed Acrylic Frosted lens
Common Uses
Ideal for chemical processing facilities, industrial and manufacturing facilities, wastewater and water treatment facilities, coolers and freezers, ethanol and petroleum refineries, power generation facilities, food and beverage preparation, and natatoriums.
RESOURCES AND DOWNLOADS
| SKU | ILP-HZV4-3L-U-50-RAFL |
|---|---|
| Weight | 20.00 LBS |
| Lumen Output | 3,034 lm |
| Total Input Watts | 21W |
| Voltage | 120-277V |
| Color Temperature (CCT) | 5000K |
| Color Rendering Index (CRI) | >80 |
