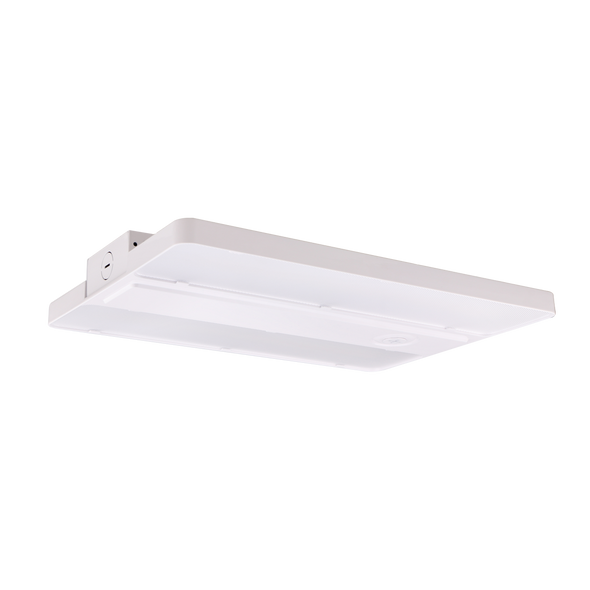

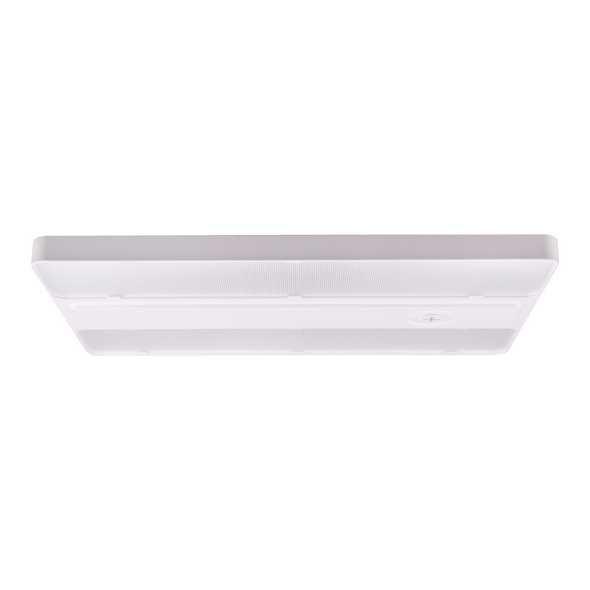

The LH1 Pro Linear High Bay offers selectable wattage (160/130/110/90W) and color temperature (4000/5000K) with adjustable lumen outputs, perfect for versatile lighting needs.
Key Features and Benefits
- PowerSET with 4 Power settings
- FieldCCeT with 2 CCT settings (4000/5000K)
- Wide range of lumen packages (13,500 – 66,000 lumens)
- Diffused polycarbonate lens for reduced glare (beam angle 90°)
- Die cast aluminum housing and impact resistant lens
- CRI >80, Efficacy up to 150 LPW
- Lumen Maintenance 70% (L70) at > 100,000Hrs
- THD <20%, Power Factor >0.9
- Surge Protection: 6kV included
- DesignLights Consortium® (DLC) Premium listed
Specifications
- Selectable wattage: 160/130/110/90W
- Selectable color temperature: 4000/5000K
- Lumen output: 24,000/19,500/16,500/13,500 lm
- Input voltage: 120-347V
Common Uses
Warehouses, Distribution Centers, Grocery Stores, Gymnasiums, Data Centers, Manufacturing Plants, Cold Storage, Big Box Retail, Indoor Recreational Facilities, Vehicle Maintenance Facilities
RESOURCES AND DOWNLOADS
| SKU | E-LH1-PS160-FCCT-H |
|---|---|
| Weight | 16.00 LBS |
| Lumen Output | 24,000/19,500/16,500/13,500 lm |
| Total Input Watts | 160/130/110/90W |
| Voltage | 120-347V |
| Color Temperature (CCT) | 4000/5000K |
| Color Rendering Index (CRI) | >80 |
