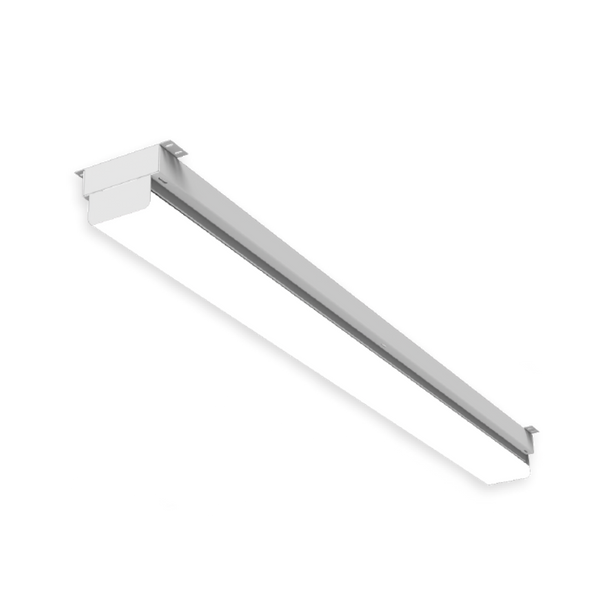

High efficacy linear retrofit with 6581 lumens output, 4000K color temperature, and frosted flat glare reducing lens. Suitable for strip mounting with fixed 4.3" channel width.
Key Features and Benefits
- Highly configurable and adaptable linear retrofit
- Three mounting types: strip, surface, and low bay
- Exceptionally high efficiency up to 180 lm/W
- Precision designed flat frosted acrylic lens
- Pair with integrated wireless grouping controls options to maximize energy savings
- 120-277V 0-10V
- Calculated L70 > 100,000 hours
- -40°F up to 123°F ambient temperature range
- ETL listed for dry and damp locations
- 5 year warranty (standard)
- DesignLights Consortium® premium qualified luminaire
Specifications
- Color Temperature: 4000K
- Lumen Output: 6581 lumens
- Efficacy: 154.1 lm/W
- Lens: Frosted flat glare reducing
- Mounting Type: Fixed 4.3" strip channel width
- Voltage: 120-277V
- Power Factor: > 0.90
- THD: < 20%
- Lifespan: Calculated L70 > 100,000 hours
- Certifications: ETL listed, DLC premium qualified
- Warranty: 5 year standard
Common Uses
Ideal for education, healthcare, offices, grocery stores, retail, storage facilities, residential, and stairwells.
RESOURCES AND DOWNLOADS
| SKU | ILP-VLR4-6LHE-U-40-FFLGR-43ST |
|---|---|
| Weight | 16.00 LBS |
