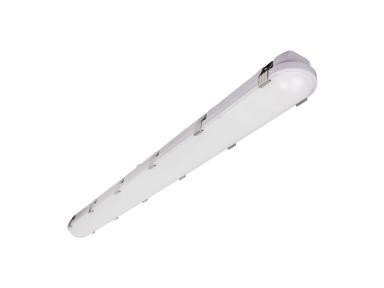

A cost-effective vapor tight fixture with tremendous flexibility, the VE Series is both wattage and CCT selectable and provides an emergency battery backup option. This durable, IP65 rated linear fixture with stainless steel clips is ideal for commercial and industrial environments where water, humidity, and dust may occur, including stairwells, parking garages, utility areas and agricultural applications.

Key Features and Benefits

• CCT and Wattage selectable (9 possible combinations with each fixture)
• 0-10V dimming standard
• CRI: ≥ 80
• Universal voltage 120-277V
• L70 lumen maintenance of 50,000 hours
• Default setting for WCS models is set to lower wattage and 4000K
• UL Listed - Suitable for wet locations

Specifications

• Nominal Wattage: 23W, 35W, 47W
• Lumens Delivered: 3,200 lm, 4700 lm, 6240 lm
• Nominal Efficacy: 150 lm/W
• Color Temperature: 3500K, 4000K, 5000K
• Input Voltage: 120-277V AC
• Power Factor: ≥0.9
• Certifications: cULus listed, FCC, RoHS Compliant, IP65

Common Uses

Ideal for stairwells, parking garages, utility areas, and agricultural applications.
