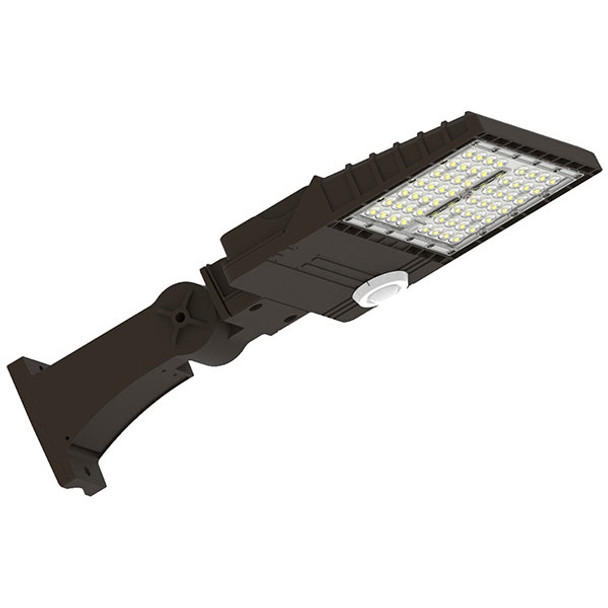

LOC-LWAL area LED light series, 100 watts, 13,579 lumens, available in 5000K color temperature (CCT), up to 50,000 hours rated life, 5 years limited warranty.
CONSTRUCTION
Die-cast aluminum housing treated by anodic oxidation. 2 holes in the center for better heat sink. Driver is easily accessible.
OPTICAL SYSTEM
Bridgelux SMD 3030 LED chips. 120° beam angle. Type 3 lens standard.
WARRANTY
5-year limited warranty. Actual performance may differ as a result of end-user environment and application.
ELECTRICAL
Available as 120-347V or 200-480V input. 10KV surge protection. -40°C to 50°C, -40°F to 122°F
INSTALLATION & MOUNTING
Pole Mounting. Extruded Arm (round or square pole), Slip Fitter, Slip Fitter Extruded Arm (round or square pole) or Trunnion.
CONTROLS & DIMMING
0-10V dimming comes standard with LV models only. Motion sensor, photocell and remote-control options available with LV models only.
FEATURES
- IP66 rated – wet location
- Corrosion and rust proof
- Sensors install in the front
- 50,000 hours lifetime
SUITABLE APPLICATIONS
- Warehouses
- Stadiums
- Factories
- Supermarkets
- Logistic Centers
- Exhibition Halls
RESOURCES AND DOWNLOADS
| SKU | LOD-LOC-LWAL-100W50KD-T3LV |
|---|---|
| Weight | 16.00 LBS |
| Light Source | LED |
| Total Input Watts | 100W |
| Fixture Size | Other |
| Lumen Output | 13,579.7lm |
| L70 Expected Life (hours) | 50,000hrs |
| Luminaire Efficacy Rating (LER) | 141.15lm/w |
| Color Temperature (CCT) | 5000K |
| Color Rendering Index (CRI) | IP66 |
| Max Ambient Temp | -40°C to 50°C, -40°F to 122°F |
| Driver Type | 120-347VAC |
