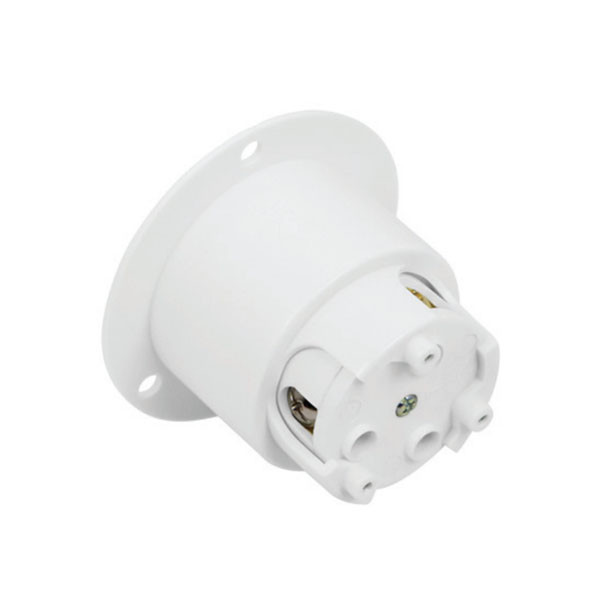

Locking flanged inlet, 30A, L5-30PFI, flammability UL94, V2 rating, reinforced thermoplastic polyester, 2 pole, 3 wire grounding, #10 AWG solid copper wire.
Minimum order qty. of 10 pcs.
DESCRIPTION
Enerlites’s locking devices provide a safe disconnect solution between an equipment load and a power source. These devices incorporate a locking interface that is engaged and disengaged simply by rotating the device assuring a safe and reliable electrical connection. The nylon housing of insulated design shields exposed metal parts on hand-held side. The industrial strength contacts resist heat rise, provide excellent conductivity. The internal dust shield design keeps terminals free of contaminants.
FEATURES
- Flammability UL94, V2 Rating
- High Impact-Resistant Chemical-Resistant Nylon
- Reinforced Thermoplastic Polyester
- Ratings and NEMA identification are permanently marked on device.
SPECIFICATIONS
- Type: Locking Flanged Inlet
- Rating: 30Amp, 125Volt
- Wiring Scheme: 2 Pole, 3 Wire Grounding
- NEMA Configuration: L5-30P
- Max Working Voltage: 125VAC
- Termination: #10 AWG Solid Copper Wire
RESOURCES AND DOWNLOADS
| SKU | EN-66453-W |
|---|---|
| Weight | 1.00 LBS |
