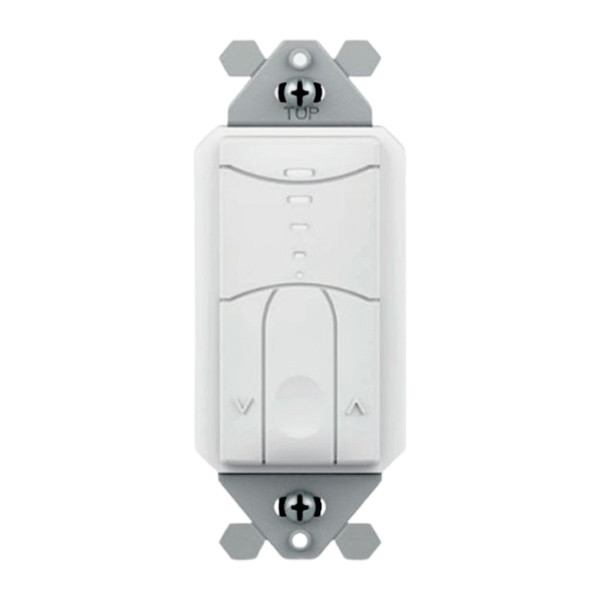

Low Voltage Wall Switch Sensor - Dual Tech 0-10V Dimmable, Partial On

The SENSORWORX family of wall switch occupancy/vacancy sensors provides a simple and cost effective  lighting control solution for many applications. Just like its line voltage counterpart the low voltage SENSORWORX 0-10V dimming wall switch sensor is designed with contractors in mind. Less than 1" deep, the unit is 25-40% shallower than typical dimmers and sensors, resulting in less crowed wall boxes. SENSORWORX products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched motion detection performance. These units are also available with an integrated microphone to provide overlapping passive acoustic occupancy detection for rooms with obstructions or where occupant motion is limited. For dimming adjustment, intuitive raise and lower buttons are present in additional to an on/off button.

FEATURES

PHYSICAL FEATURES

• Enclosure is 25-40% Shallower than Other Sensors (<1" Depth into Wallbox)
• Unique Bat-Wing Shaped Lens ProvidesEnhanced Peripheral Detection
• Modern Look and Intuitive  Easy-Tap Buttons for On/Off, Raise, & Lower
• Rugged Vandal Resistant Lens
• Settings are Adjustable Without Removing Cover Plate

OPERATIONAL FEATURES

• Compatible with 0-10V Dimmable LED, and Fluorescent Lighting
• Wall-to-Wall Passive Infrared Small Motion Detection
• Passive Acoustic Detection (Optional)- Prevents False Offs when No Motion Is Present
• 100% Passive Detection Methods- No Interference Potential from External Devices
• Configurable Sensor Settings Including Time Delays and Occupancy/Vacancy Operating Modes

COVERAGE PATTERNS

• 30” to 48” (0.76 - 1.22 m) recommended mounting height
• Wall to wall (~180 degree) coverage
• Small motion (e.g., hand movement) detection up to 20 ft (6.10 m), ~625 ft²
• Large motion (e.g., walking) detection greater than 36 ft (10.97 m), ~ 2025 ft²
• Overlapping acoustic detection of occupants over entire coverage area
• Advanced signal processing filters out nuisance noises while not effecting overall sensitivity

APPLICATIONS

A wall switch sensor is typically used to retrofit an existing wall switch in a small room or enclosed space. A Passive Infrared (PIR) only sensor is sufficient for spaces where line of site is maintained and occupants are periodically moving (e.g., copy rooms, storage rooms). Dual technology sensors are necessary where occupants may be partially blocked from the sensor’s direct view or where they may be stationary (e.g., private offices or restrooms with stalls).

• Private Restrooms
• Copy Rooms
• Restroom with Stalls
• Small Meeting Room
• Small Office
• Vestibule
• Storage Room
• Break Room

SPECIFICATIONS

• Operating Voltage: 120/277 VAC, 50/60 Hz
• Load Ratings: MAX: 800W @ 120VAC|1200W @ 277VAC MIN: None
• Load Types: LED Driver/Lamps CFL, Electronic/Magnetic Ballasts (Fluorescent), Tungsten (Incandescent)
• Dimming Compatibility: 0-10 VDC ballasts or drivers compliant with IEC 60929 Annex E.2
• Dimming Load: - 50 mA (sink only)
• Operating Temp: 32°F to 122°F (0°C to 50°C) - Standard, -40° F/C (with -HE Option)
• Relative Humidity: 0-95% Non-Condensing, Indoor Use Only
• Mounting: Single Gang Switch Box
