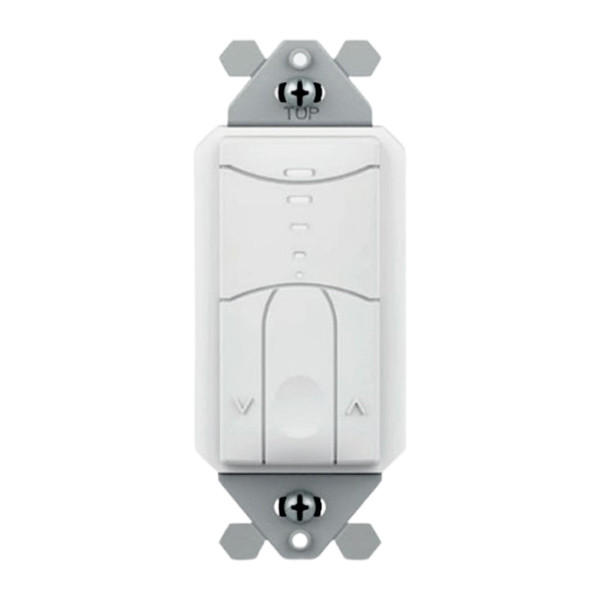

Low Voltage Wall Switch Sensor - Dual Tech 0-10V Dimmable Vacancy Manual On

The SENSORWORX family of wall switch occupancy/vacancy sensors provides a simple yet cost effective lighting control solution for many retrofit applications. Designed with contractors in mind, the SENSORWORX 0-10V dimming wall switch sensor is significantly shallower than typical dimmers and sensors, resulting in less crowed wall boxes. Additionally, versatile wiring enables usage with or without a neutral and allows reversal of line and load connections. SENSORWORX products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched motion detection performance. These units are also available with an integrated microphone to provide overlapping passive acoustic occupancy detection for rooms with obstructions or where occupant motion limited. For dimming adjustable, intuitive raise and lower buttons are present in a addition to an on/off button.

FEATURES

ELECTRICAL

• Interchangeable Line & Load Wires - Impossible to Wire Backwards
• Accommodates Neutral (3-Wire) and No-Neutral (2-Wire) Installation
• Electronically Timed Switching Ensures Long Relay Life
• Compatible with 0-10V Dimmable LED, and Fluorescent Lighting
• Meets NEC 404.2(c) & 404.22 Guidelines Regarding Powering Over Ground & Current Leakage

PHYSICAL

• Enclosure is 25-40% Shallower than Other Sensors (< 1" Depth into Wallbox)
• Unique Bat-Wing Shaped Lens Provides Enhanced Peripheral Detection
• Self-Grounding Mounting Strap
• Modern Look and Intuitive Easy-Tap Buttons for On/Off, Raise, & Lower
• Rugged Vandal Resistant Lens
• Settings are Adjustable Without Removing Cover Plate

OPERATIONAL

• Wall-to-Wall Passive Infrared Small Motion Detection
• Passive Acoustic Detection (Optional) - Prevents False Offs when No Motion is Presented
• 100% Passive Detection Methods - No Interference Potential from External Devices
• Configurable Sensor Settings Including Time Delays and Occupancy/Vacancy Operating Modes
• Configurable Dimming Parameters including High/Low Trims, Turn on Levels, and Curve Types
• Blue Locator LED when Lights are Off

COVERAGE PATTERNS

• 30" to 48" (0.76 - 1.22 m) recommended mounting height
• Wall to wall (~180 degree) coverage
• Small motion (e.g., hand movement) detection up to 20 ft (6.10 m), ~625 ft2
• Large motion (e.g., walking) detection greater than 36 ft (10.97 m), ~ 2025 ft2
• Overlapping Acoustic detection of occupants over entire coverage area
• Advanced signal processing filters out nuisance noices while not effecting overall sensitivity

APPLICATIONS

A wall switch sensors is typically used to retrofit an existing wall switch in a small room or enclosed space. A Passive Infrared (PIR) only sensor is sufficient for spaces where line of site is maintained and occupants are periodically moving (e.g., copy rooms, storage rooms). Dual tehnology sensors are necessary where occupants may be partially blocked from the sensor's direct view or where they may be stationary(e.g., private offices or restrooms with stalls).

• Private Restrooms
• Copy Rooms
• Restroom with Stalls
• Small Meeting Room
• Small Offices
• Vestibule
• Storage Room
• Break Room

SPECIFICATIONS

• Operating Voltage: 120/277 VAC, 50/60 Hz
• Load Ratings: MAX: 800W @ 120VAC|1200W @ 277VAC
• Load Types: LED Driver/Lamps, CFL, Electronic/Magnetic Ballasts (Fluorescent), Tungsten (Incandescent)
• Dimming Compatibility: 0-10 VDC Ballasts or drivers compliant with IEC 60929 Annex E.2
• Dimming Load: -50 mA (sink only)
• Operating Temp: 32°F to 122°F (0°C to 50°C - Standard -40° F/C (with -HE Option)
• Relative Humidity: 0-95% Non-Condensing, Indoor Use Only
• Mounting: Single Gang Switch Box
