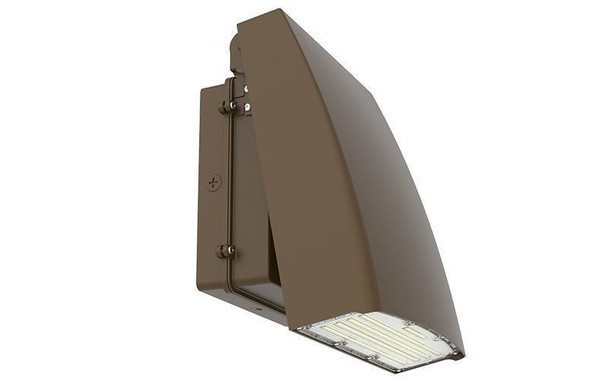

The LWAX MD Shroud LED Cutoff Wall Pack is an advanced outdoor lighting solution designed to offer versatility, efficiency, and durability. Available in multiple wattages—50W, 80W, 100W, and 120W—this wall pack delivers up to 15,000 lumens and a selectable color temperature range of 3000K, 4000K, 5000K, or 5700K. With a rated life of up to 70,000 hours and IP65 certification, it's built to withstand harsh weather conditions, providing reliable performance in wet locations. Additionally, the product comes with a 7-year warranty, ensuring peace of mind and longevity.
Ideal for various outdoor applications, this wall pack perfectly suits general site lighting, alleys, loading docks, doorways, pathways, and parking areas. Its compatibility with motion sensors and instant on/off controls makes it a practical and energy-efficient choice.
Features
- High light transmittance, anti-UV, and fire-resistant PC lens
- Four 1/2" knockouts: 1 top, 1 on each side, and 1 back
- Die-cast aluminum housing with a dark bronze powder coat finish
- Adjustable light head from 0° to 90°
- Full cutoff, dark sky compliant
- 7-year warranty
- Multi CCT and power settings
Electrical Specifications
- Voltage: 120-277V AC 60Hz
- Available wattages: 50W, 80W, 100W, 120W
- Power factor: >0.95
- Efficacy: 130 LPW
Mechanical Specifications
- Die-cast aluminum with powder coat finish
- High light transmittance, anti-UV and fire-resistant shatterproof PC lens
- Adjustable light head from 0° to 90°
- Full cutoff, dark sky compliant
- Four 1/2" knockouts: 1 top, 1 on each side, and 1 back
- Wet location rated (IP65)
- 7-year warranty
Lighting Specifications
- Dimming: 0~10V dimmable
- Multi CCT and power settings
- Type II distribution for wide walkways, ramps, entrance roadways, and long, narrow lighting areas
- Total lumens: up to 15,000 LM
- Color temperatures: 3000K, 4000K, 5000K, 5700K
- Color rendering index (CRI): ≥ 80
- Beam angle: 80° x 100°
- Rated life: 70,000 hours
Applications
- General site lighting
- Alleys
- Loading docks
- Doorways
- Pathways
- Parking areas
| SKU | WM-LWA-SH2 |
|---|---|
| Weight | 6.00 LBS |
| Light Source | LED |
| Driver Type | 120-277VAC |
| Lumen Output | 15,000lm |
| Luminaire Efficacy Rating (LER) | 130lm/W |
| L70 Expected Life (hours) | 70,000 hrs. |
| Color Rendering Index (CRI) | > 80 |
| Color Temperature (CCT) | MCT |
| Total Input Watts | 50W/ 80W/ 100W/ 120W |
