MaxLite

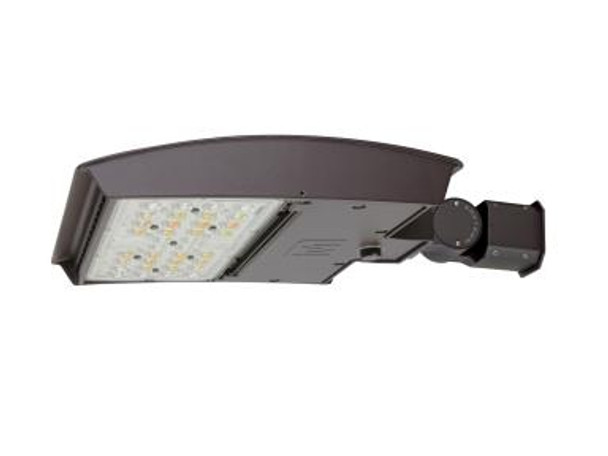

M Series, 75W, 120-277V, Type 5 Low Glare, 3000/4000/5000K, Dark Bronze, Knuckle Slip Fitter, C-Max Compatible

No reviews yet Write a Review
Ask Questions

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

M Series, 75W, 120-277V, Type 5 Low Glare, 3000/4000/5000K, Dark Bronze, Knuckle Slip Fitter, C-Max Compatible

$272.31
  • SKU: MX-M75UW-CSBKCR
  • MPN: M75UW-CSBKCR
  • Shipping: Calculated at Checkout

Quick Overview

75W outdoor light with selectable color temperature (3000K, 4000K, 5000K) and adjustable lumen outputs, featuring a Type 5 Square/Flood Soft Wide distribution and straight arm mounting.

In Stock & Ready To Ship!
Current Stock:Only left:

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

MaxLite's M Series 75W outdoor light with selectable color temperature (3000K, 4000K, 5000K) and adjustable lumen outputs, featuring a Type 5 Low Glare distribution and Knuckle Slip Fitter .

Key Features and Benefits

  • Versatile design for outdoor lighting applications
  • Selectable color temperature: 3000K, 4000K, 5000K
  • Type 5 Low Glare distribution
  • Die-cast aluminum housing with corrosion-resistant polyester powder coat finish
  • UV stabilized polycarbonate lens
  • C-Max compatible for additional control

Specifications

  • Wattage: 75W
  • Voltage: 120-277V
  • Color Temperature: 3000K, 4000K, 5000K
  • CRI: ≥70
  • Lumens: 9,530 - 10,100
  • Efficacy: 125 - 146 lm/W
  • Dimming: 0-10V
  • Operating Temperature: -40°F to 104°F (-40°C to 40°C)
  • Certifications: DLC Premium, FCC, cULus, RoHS, T24 Compliant
  • Environment: Wet listed, IP66
  • Warranty: 10 years

Common Uses

Ideal for area lighting, flood lighting, and wall-mounted applications in outdoor settings such as parking lots, building perimeters, and general outdoor illumination.

RESOURCES AND DOWNLOADS

M Series Spec Sheet
