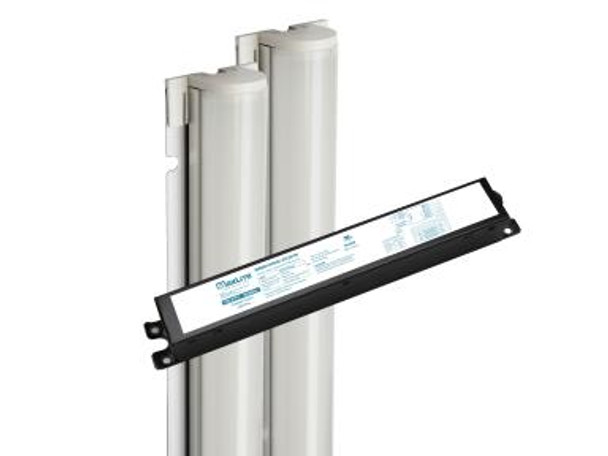

The Magnetic Retrofit Bar Kit (MRBK) from MaxLite offers an efficient and straightforward solution for upgrading outdated fluorescent lighting systems with high-performance LEDs. This 4 ft. kit with 2 bars is designed for easy installation using its magnetic back and delivers a selectable color temperature of 4000K and adjustable lumen outputs with a medium setting.
Key Features and Benefits
- Includes driver, linear bar, and mounting hardware
- Magnetic back for easy installation
- UL 1598C Classified Retrofit Kits
- UL Class 2 Low Voltage System
- Long life of 50,000 hours
- Universal input voltage of 120/277V
- Dimming: 0-10V with a range of 20%-100%
- c-Max compatible
- Aluminum backing for excellent thermal dissipation
- Multi-channel/multi-output driver for 3 light levels
- Field installable sensor and emergency battery backup available
Specifications
- Size: 4 ft.
- Lumen Output: 1921 lumens (medium setting)
- Nominal Wattage: 14W
- Efficacy: 130 lm/W
- CRI: ≥80
- Color Temperature: 4000K
- L70 Lumen Maintenance: 50,000 hours
- Power Factor: ≥0.9
- Input Voltage: 120-277V
- Operating Temperature: -4°F - 104°F
- Humidity: 10-80% RH Non-Condensing
- Certifications: DLC Premium, cULus Classified, FCC, UL 1598C Classified
- Suitable for dry locations
- Warranty: 5 years
Common Uses
Ideal for office lighting, commercial spaces, and other settings where efficient, high-quality lighting is essential.
RESOURCES AND DOWNLOADS
| SKU | MX-MRBK-42LFM-40 |
|---|---|
| Weight | 8.00 LBS |
