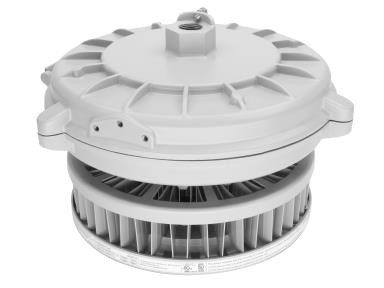

MaxLite HLR Series Hazardous Location Round High Bay, 170W, 120-277V, 5000K, 120° Wide Distribution, Pendant/Swivel Surface/Swivel Clamp Mount, Clear Glass, Gray Finish

By MaxLite
Clearance

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

MaxLite HLR Series Hazardous Location Round High Bay, 170W, 120-277V, 5000K, 120° Wide Distribution, Pendant/Swivel Surface/Swivel Clamp Mount, Clear Glass, Gray Finish

Now: $268.25
Reg: $580.00
Sale 54%
You save $ 311.75
  • SKU: MX-HLR170HW50PCG
  • MPN: HLR170HW50PCG

Quick Overview

170W hazardous location LED high bay for Class I Div 2 and Class II Div 2 areas, delivering 15,470 lumens at 5000K with IP66 protection, 120-277V input, and rugged marine-grade die-cast aluminum construction.

UL Listed
WARRANTY 5 YEARS
IP66
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The MaxLite HLR Series hazardous location high bay is engineered for demanding industrial and marine environments where safety and reliability are critical. This 170W configuration combines high lumen output, robust ingress protection, and Class I/II Division 2 compliance for dependable operation in harsh indoor or outdoor applications. As part of MaxLite’s HazLoc lineup, it offers a compact, low-maintenance alternative to traditional HID fixtures.

Key Features and Benefits

  • Certified for hazardous areas: Class I, Division 2 (Groups A, B, C, D) and Class II, Division 2 (Groups F, G).
  • Built for harsh service with marine-grade, copper-free die-cast aluminum housing and stainless steel hardware.
  • IP66-rated sealed construction helps protect against dust and powerful water jets in outdoor and washdown-prone spaces.
  • Includes 15kV surge protection and high power factor performance for improved electrical resilience.
  • Long-life LED system reduces relamping frequency and maintenance costs in hard-to-access installations.
  • Backed by a 5-year warranty and supported by UL/cUL, FCC, LM-79, LM-80, and RoHS compliance credentials.

Specifications

  • Lumen Output: 15470
  • Wattage: 170W (167W input power)
  • Voltage: 120-277V
  • Color Temperature: 5000K
  • CRI: 74
  • Efficacy: 93 lm/W
  • Rated Life (L70): 150000 hours
  • Distribution: 120° wide
  • Operating Temperature: -40°C to 50°C
  • Lens: Tempered glass, 3.2T clear
  • Weight: 15.4 lbs

Common Uses

Ideal for oil and gas facilities, chemical processing areas, manufacturing plants, wastewater sites, marine locations, and other hazardous or corrosive environments requiring high-bay illumination with certified safety performance.
