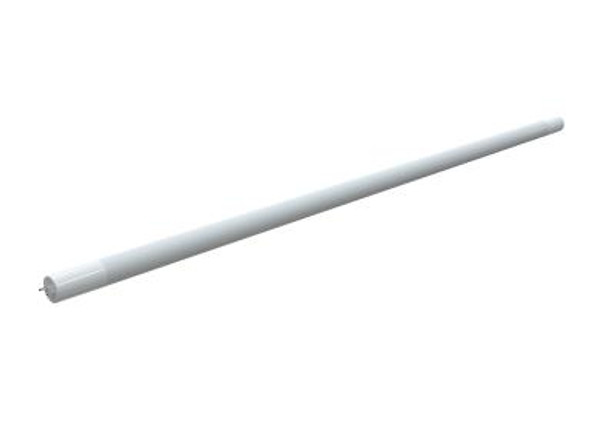

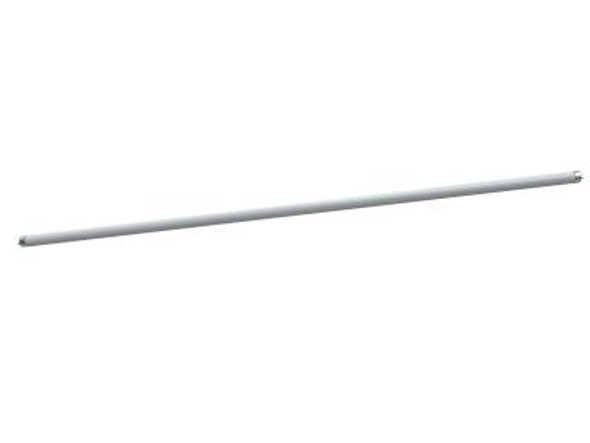

Introducing the MaxLite UL TYPE-B Series, a versatile LED T8 lamp designed for efficient retrofit into linear fluorescent fixtures. Featuring single or double-ended wiring options, this lamp offers energy savings and easy installation.

Key Features and Benefits

• Universal Voltage: 120V-277V applications
• Color Rendering Index (CRI): ≥80
• Easy retrofit into most common linear fluorescent fixtures
• Simple ballast bypass, single-ended/double-ended power
• Instant on, mercury free, and virtually no UV or IR light
• Suitable for damp locations
• All glass construction
• Rated Lifetime @ L70: 50,000 Hours
• Suitable for use with emergency lighting

Specifications

• Length: 4 ft
• Base: G13
• Nominal Wattage: 12W
• Lumens Delivered: 1700-1800 lm
• Nominal Efficacy: 142-150 lm/W
• Color Temperature: 3500K,4000K,5000K
• Input Voltage: 120-277V AC, 50/60 Hz
• Power Factor: ≥ 0.9
• Beam Angle: 210°
• Operating Temperature: -4°F to 113°F (-20°C to 45°C)
• Certifications: cULus listed, FCC, Rohs Compliant, NSF/ANSI 2 - Food Equipment

Common Uses

Ideal for commercial and industrial settings, such as offices, retail spaces, and warehouses, where energy efficiency and long-term operational savings are desired.
