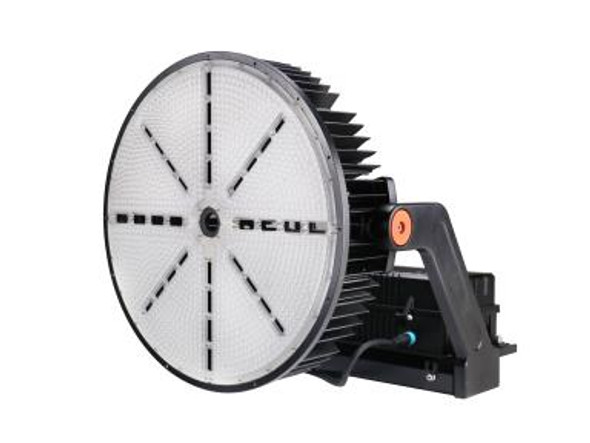

The FieldMax Sports/HO Flood is the perfect solution for either sports fields or large areas. It has 3 wattage packages and up to 5 optical choices which can be tailored to your specific application. It works great for football, soccer, baseball and multi-purpose recreational fields. It works equally well on large area situations such as transportation terminals or agricultural landscapes. In addition, it offers high voltage (480V) and a variety of integral controls options including a dynamic theatrical effect for sports venues.
Key Features and Benefits
- 515W (up to 77K lumens)
- High voltage (220-480V)
- 6kV + 10kA minimum surge protection, 20kA
- Slipfitter or yoke (suitable for Cross-Arms) mounting choices
- Integral controls - from simple On/Off photocell to dimming and dynamic theatrical effects
- Field installable visor and laser pointer (for aiming) accessories available
Specifications
- Power Consumption: 515W
- Lumens: 72,400 - 77,350 lm
- Efficacy: 130+ lm/W
- CRI: 70+
- Color Temperature: 4000K or 5000K
- Beam Spreads: Medium Wide
- Voltage: 220-480V
- Surge Protection: 6kV integral to driver + 20kA (220-480V) standalone standard
- Lumen Maintenance: 100,000+ hours (L70)
- Housing: Die Cast Aluminum with corrosion-resistant polyester powder coat
- Lens: Polycarbonate
- Operating Temperature: -40°C/-40°F - 40°C/104°F
- Weight: Y mount 14.5K/32LBS, K mount 16.7K/36.8LBS
- Listings: cULus, FCC, TAA Available
- DLC: Outdoor Luminaires, Very High Output, Architectural Flood and Spot Luminaires - Premium
- Environment: IP65, ANSI 3G Vibration (both mountings)
- Warranty: 10 Years
Common Uses
Sports and recreation (Class of Play III or IV, per IES RP-6-15), High mast, Airports & transportation terminals, Agriculture
RESOURCES AND DOWNLOADS
| SKU | MX-SHF515H-MW |
|---|---|
| Weight | 16.00 LBS |
| Lumen Output | 72,400 - 77,350 |
| Total Input Watts | 515W |
| Voltage | 220-480V |
| Color Temperature (CCT) | 4000K or 5000K |
| Color Rendering Index (CRI) | 70+ |
