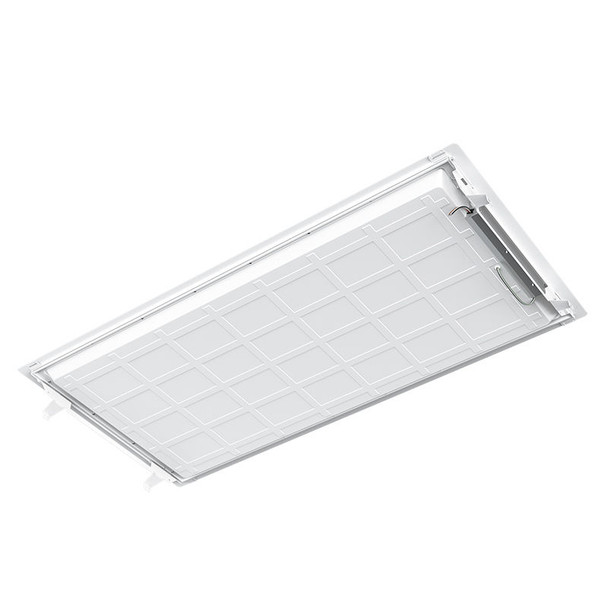

Premium High-Lumen Retrofit Flat Panel, 2x4, Multi Color Temperature, Multi Power/Wattage

Elevate your space with Westgate’s Premium High-Lumen Retrofit Flat Panel. This cutting-edge LED fixture delivers exceptional brightness and energy efficiency, seamlessly replacing traditional fluorescent troffers. With advanced LED technology and uniform light distribution, it’s perfect for commercial, retail, and educational settings. Easy to install and designed for longevity, our retrofit flat panel offers superior illumination and a higher ROI. Experience the future of lighting with Westgate.

Key Features and Benefits

• Voltage: 120-277VAC 50/60Hz
• Wattage: 24W/30W/40W
• Power Factor: >0.9
• Efficacy: 125 LPW
• Multi CCT & Power (Selectable Switch On Back Of Fixture)
• Dimmable: 0~10V Dimming
• LED Type: SMD 2835
• Total Lumens: 5000 LM
• Color Rendering Index: CRI ≥ 80
• Color Temperatures: 3500K/4000K/5000K
• Rated Life: 50,000 Hours
• 5-Year Warranty
• White Finish
• Lens: Polycarbonate
• Galvanized Steel Construction
• Integrated Securement Tabs for Securement to Existing Troffer Housing
• Minimum Depth of only 3” Necessary To Allow Proper Clearance And Installation
• Retrofit Kit Is Powder Coated After Fabrication With High Quality, Durable Finish To Ensure No Unfinished Edges And Avoid Future Potential Of Corrosion
• Components Fit Together Easily Without The Need For tools during installation. in addition the light module Can Be Removed From Below The Ceiling For Continent Maintenance And Upgrades
• Operating Temperature: -4°F ~ 113°F

Specifications

• Voltage: 120-277VAC 50/60Hz
• Wattage: 24W/30W/40W
• Power Factor: >0.9
• Efficacy: 125 LPW
• Multi CCT & Power (Selectable Switch On Back Of Fixture)
• Dimmable: 0~10V Dimming
• LED Type: SMD 2835
• Total Lumens: 5000 LM
• Color Rendering Index: CRI ≥ 80
• Color Temperatures: 3500K/4000K/5000K
• Rated Life: 50,000 Hours
• 5-Year Warranty
• White Finish
• Lens: Polycarbonate
• Galvanized Steel Construction
• Integrated Securement Tabs for Securement to Existing Troffer Housing
• Minimum Depth of only 3” Necessary To Allow Proper Clearance And Installation
• Retrofit Kit Is Powder Coated After Fabrication With High Quality, Durable Finish To Ensure No Unfinished Edges And Avoid Future Potential Of Corrosion
• Components Fit Together Easily Without The Need For tools during installation. in addition the light module Can Be Removed From Below The Ceiling For Continent Maintenance And Upgrades
• Operating Temperature: -4°F ~ 113°F

Common Uses

Ideal for commercial, retail, and educational settings where energy efficiency and superior illumination are essential.
