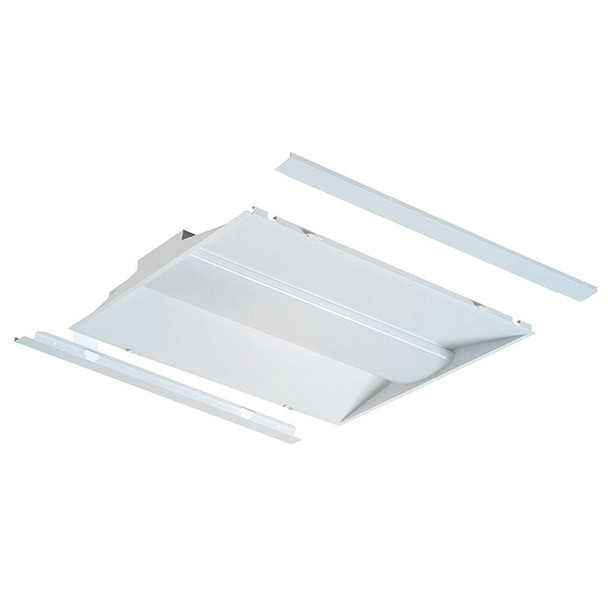

Premium High-Lumen 2x2 LED Retrofit Troffer

Upgrade your lighting with our Premium High-Lumen 2x2 LED Retrofit Troffer, designed for energy efficiency and cost-effectiveness. This advanced lighting solution offers selectable color temperatures (3500K, 4000K, 5000K) and adjustable wattage (15W, 20W, 25W), making it ideal for various commercial applications such as offices, retail stores, and educational facilities.

Key Features and Benefits

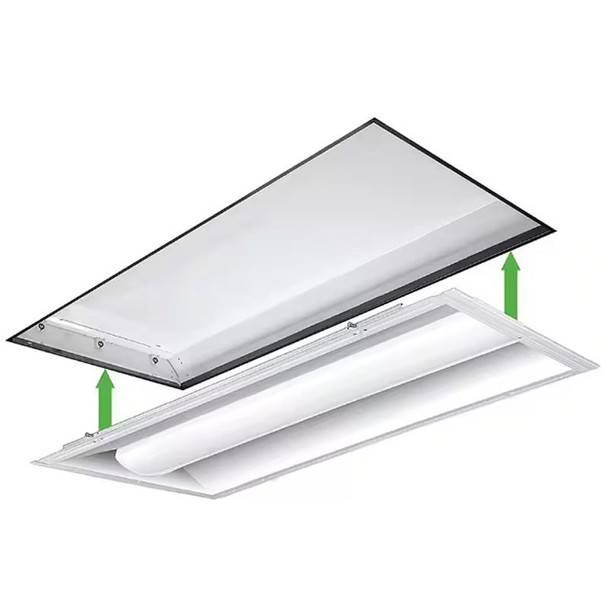

Seamless integration into existing troffer installations
Selectable color temperature: 3500K, 4000K, 5000K
Adjustable wattage: 15W, 20W, 25W
High efficacy: 125 LPW
High CRI: ≥ 80
Long-lasting performance: Rated life of 50,000 hours
Dimmable functionality: 0~10V dimming
Comes with a 5-year warranty for peace of mind

Technical Specifications

Voltage: 120-277VAC 50/60Hz
Total Lumens: 1875LM/2500LM/3125LM
Operating Temperature: -4°F ~ 122°F
Construction: Durable galvanized steel with a white finish
Dimensions: 21"(L) x 22 3/4"(W) x 2"(H)
Lens Material: Polycarbonate

Common Uses

Ideal for commercial lighting applications, including office spaces, retail stores, and educational facilities, where energy efficiency and cost-effectiveness are essential.

RESOURCES AND DOWNLOADS

Premium High-Lumen Retrofit Troffer Spec Sheet

Details

Beam Angle Options:	120°
Color Rendering Index (CRI):	>80
Color Temperature (CCT):	3500K\|4000K\|5000K
Country of Origin:	China
Dimming Options:	0-10V
Finish Options:	White
IP Rating:	IP40
Item Height (Inch):	2.2
Item Length (Inch):	22.8
Item Weight (LBS):	4.06
Item Width (Inch):	21.1
L70 Expected Life (hours):	50000
LED Type:	SMD2835 LED
Lens Material:	Polycarbonate Lens
Listings and Ratings:	UL\|DLC
Manufacturer's Warranty:	5 YEARS
Operating Temperature:	-4°F to 113°F
Pack Size:	2
Power Factor:	>0.90
Primary Material:	Iron and PC
Special Features:	Power Selectable\|Color Temperature Selectable
THD:	<20%
Total Input Watts:	15W\|20W\|25W
Voltage:	120-277V
