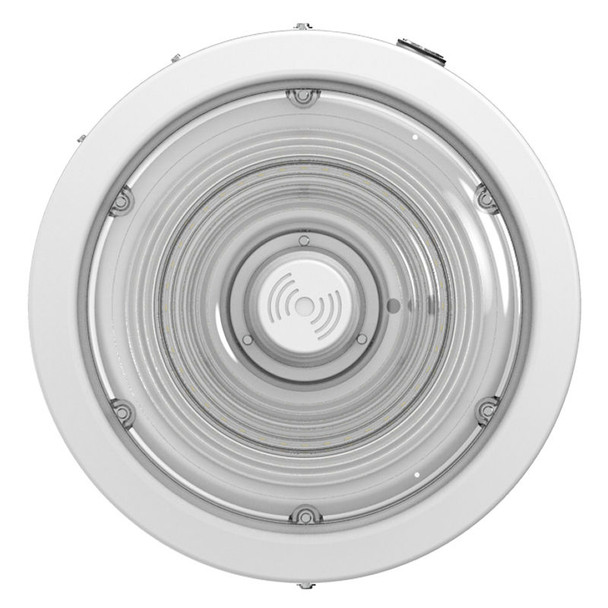

Westgate CXER Series: Advanced Garage and Ceiling Light
The Westgate CXER Series represents a breakthrough in garage and ceiling lighting solutions. Perfectly designed for mounted heights ranging from 9 to 16 feet, this innovative round die-cast aluminum fixture is paired with a prismatic polycarbonate lens. It also features a convenient multi-color temperature and multi-power/wattage switch integrated within the fixture, making it versatile for various environments.
Key Features and Benefits
- Wattage Options: 30W, 40W, 50W
- Input Voltage: 120-277VAC 50/60Hz
- LED Type/Brand: LUMILEDS 2835LED
- Total Lumens: Up to 6750LM
- Color Temperature: Adjustable to 3000K, 4000K, 5000K
- Lifespan: Approximately 70,000 hours
- Warranty: 7 years
Technical Specifications
- Dimensions: 11 1/4"(W) x 3"(H)
- Beam Angle: 150°
- Operating Temperature: -40°F to 104°F
- Dimmable: 0-10V
Common Applications
This versatile lighting option is ideal for use in indoor parking lots, commercial buildings, schools, warehouses, retail centers, and apartment complexes.
Resources and Downloads
| SKU | WM-CXER-30-50W-MCTP-SR-WH |
|---|---|
| Weight | 16.00 LBS |
| Total Input Watts | 30W |
| Total Input Watts | 40W |
| Total Input Watts | 50W |
| Lumen Output | 135/W |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Voltage | 100-277V |
| Color Rendering Index (CRI) | >70 |
| L70 Expected Life (hours) | 50,000 |
| Listings and Ratings | UL |
