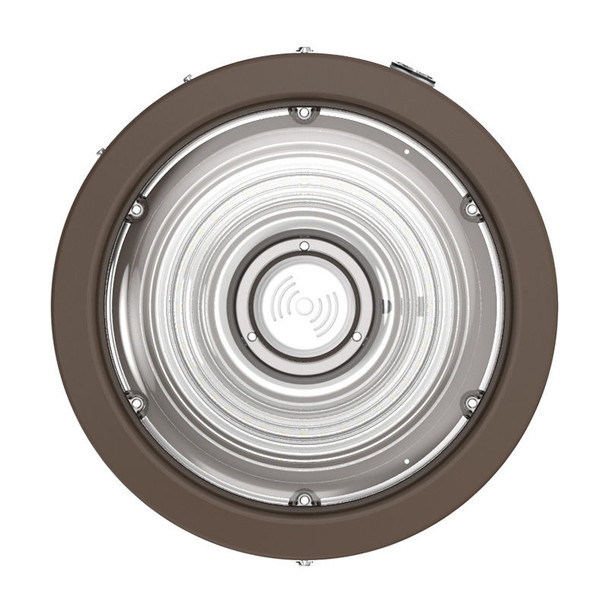

Compact Garage and Ceiling Light - Versatile & Efficient
Ideal for a range of indoor environments, this compact garage and ceiling light measures 11 1/4” (W) x 3” (H) and offers selectable color temperatures (3000K, 4000K, 5000K) along with adjustable lumen outputs (4050LM, 5400LM, 6750LM). The light is designed to meet various lighting needs while being energy-efficient and long-lasting.
Key Features and Benefits
- Constructed with Stamped Galvanized Steel and a Prismatic Polycarbonate Lens for durability and optimal light diffusion.
- Selectable Wattage: 30W, 40W, 50W to suit different brightness requirements.
- Input Voltage: 120-277VAC, 50/60Hz for wide compatibility.
- High Power Factor: >0.90, ensuring energy efficiency.
- Impressive Light Output: 135 Lumens per Watt (LPW).
- 0~10V Dimmable for flexible lighting control.
- Equipped with LUMILEDS 2835LED for reliable and high-quality illumination.
- Maximum Lumens: 6750LM ensures a bright and well-lit environment.
- Color Temperature Options: 3000K, 4000K, 5000K.
- Color Rendering Index (CRI): >70 for accurate color representation.
- Wide Beam Angle: 150° for broad light coverage.
- Extended Lifespan: 70,000 hours, reducing maintenance needs.
- Optional Features: Battery Backup and Motion Sensor are available.
- 7-year Warranty for peace of mind.
Technical Specifications
- Dimensions: 11 1/4” (W) x 3” (H)
- Operating Temperature: -40°F ~ 104°F
- Suitable for Damp Locations
- Input Current: 0.6A MAX
Common Uses
Perfect for indoor parking lots, commercial buildings, schools, warehouses, retail centers, and apartment complexes. Designed for mounting heights ranging from 9 to 16 feet, this light is optimal for diverse lighting applications.
Resources and Downloads
SKU | WM-CXER-30-50W-MCTP-SR |
---|---|
Weight | 10.00 LBS |
Total Input Watts | 30W |
Total Input Watts | 40W |
Total Input Watts | 50W |
Lumen Output | 135/W |
Color Temperature (CCT) | 3000K |
Color Temperature (CCT) | 4000K |
Color Temperature (CCT) | 5000K |
Listings and Ratings | UL |
