FLOOD/AREA Ligh,t 480V

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

FLOOD/AREA Ligh,t 480V

$226.74
MSRP: $255.78
You save $ 29.04 (11%)
  • SKU: WM-LFX-LG-80-150W-MCTP-480V-SC
  • UPC: 845060040197
  • MPN: LFX-LG-80-150W-MCTP-480V-SC

Quick Overview

FLOOD/AREA Ligh,t 480V (wattage: 80W/100W/150W; lumens: 21750; efficacy: 145LM/W; CCT: 30K/40K/50K; voltage: 480V)

UL Listed
DLC Standard
WARRANTY 7 YEARS
IP65
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left: 101
Free shipping on this item
Call, chat, or email for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

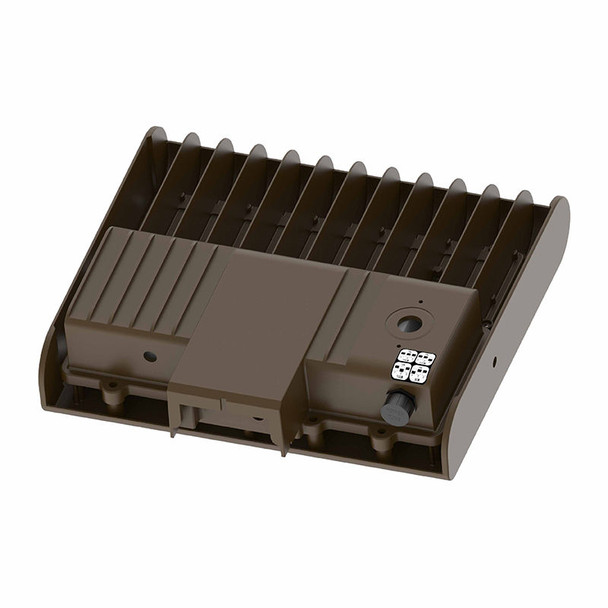

High-Performance Adjustable Flood/Area Light

Experience versatile and efficient lighting with our adjustable flood/area light, featuring selectable color temperature options (3000K/4000K/5000K) and variable lumen outputs up to 21750 lumens. Available in 80W, 100W, and 150W configurations, it offers superior performance and reliability for various outdoor applications.

Key Features and Benefits

  • Selectable Color Temperature: 3000K, 4000K, 5000K
  • Adjustable Wattage: 80W, 100W, 150W
  • Efficacy: 145 lumens per watt
  • Robust Die-Cast Aluminum Housing with Powder Coat Finish
  • IP65 Rated for Wet Locations
  • 10KV Lightning Surge Protection
  • NEMA Twist-Lock Shorting Cap Included
  • 0-10V Dimmable
  • 70,000 Hours Rated Life
  • 7-Year Warranty

Technical Specifications

  • Voltage: 480V AC / 50~60 Hz
  • Power Factor: >0.9
  • Operating Temperature: -40°F to 104°F
  • Dimensions: 11"(H) x 12-5/8"(W) x 3-3/8"(D)
  • Total Lumens: 21750LM Max
  • Color Rendering Index: ≥ 82
  • Beam Angle: 90º x 120º
  • Effective Projected Areas (EPA): Front = 0.38 ft², Side = 0.30 ft², Face = 1.05 ft²

Applications

Ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas. It can effectively replace existing HID flood lights or wall packs, offering advanced illumination with minimal maintenance.

RESOURCES AND DOWNLOADS

Adjustable Flood/Area Light Spec Sheet
