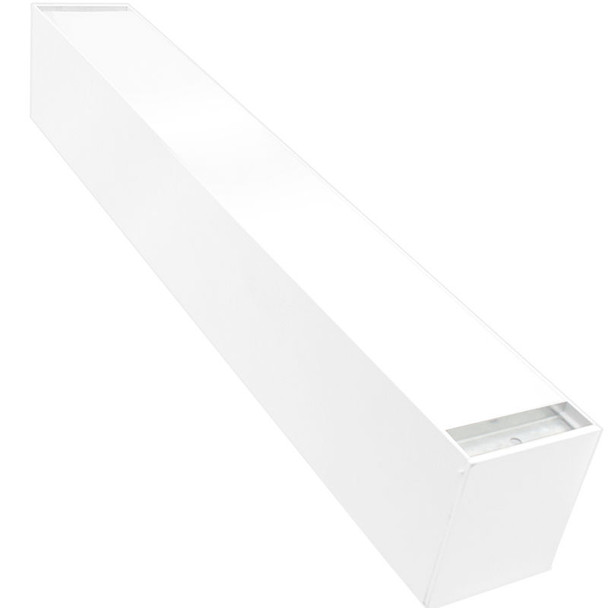

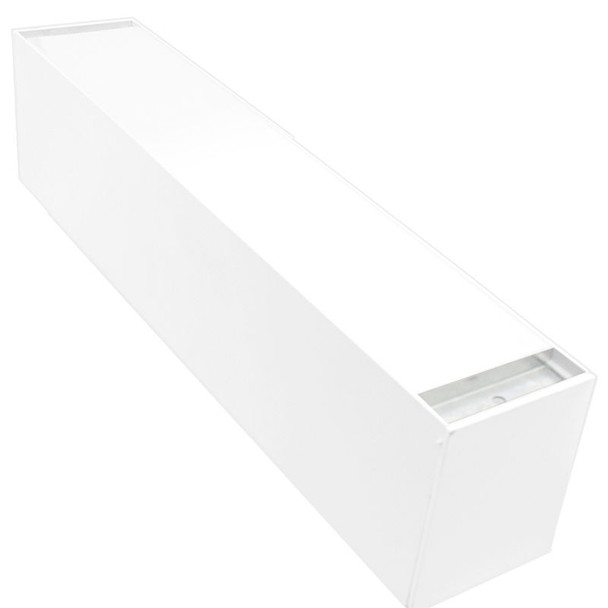

SCX Series 6ft. Indirect Linear Fixture

Introducing the cutting-edge SCX series 6ft. long by 2-3/4" wide indirect linear fixture. Engineered for efficiency and performance, this 60-watt fixture delivers an impressive 6,600 lumens, making it the perfect choice for a variety of settings including storage rooms, offices, conference rooms, and retail spaces. With an adjustable color temperature range from 3000K to 5000K and a rated life of up to 50,000 hours, this fixture ensures excellent lighting quality and longevity. The product is backed by a 5-year limited warranty for peace of mind.

Key Features

• LED Superior Architectural Lights
• Opal Polycarbonate Lens for Direct (UP) Lighting
• Multi-Color Temperature (MCT) Selectable with a switch inside the fixture

Electrical Specifications

• Voltage: 120-277VAC 50/60Hz
• Wattage: 60W
• Power Factor: >0.95
• Total Harmonic Distortion: ≤ 20%

Mechanical Properties

• Low Profile Modern Design
• Aluminum Housing with Matte White Finish
• IP Rating: IP54
• Operating Temperature: -13°F to 104°F
• Power Cord exits through suspension hole on the end of the fixture
• Suspension cables required (not included)
• 5-Year Warranty

Lighting Performance

• Dimmable: 0-10V Dimming
• Total Lumens: 6658LM/ 6724LM/ 7046LM/ 7102LM
• Color Temperatures: 3000K, 3500K, 4000K, 5000K
• Color Rendering Index: CRI ≥ 80
• Beam Angle: 104.8°(H) x 100.5°(V)
• Up Light Option Available

Ideal Applications

• Perfect for offices, hotels, corridors, libraries, and conference halls
• Suitable for any indoor applications
