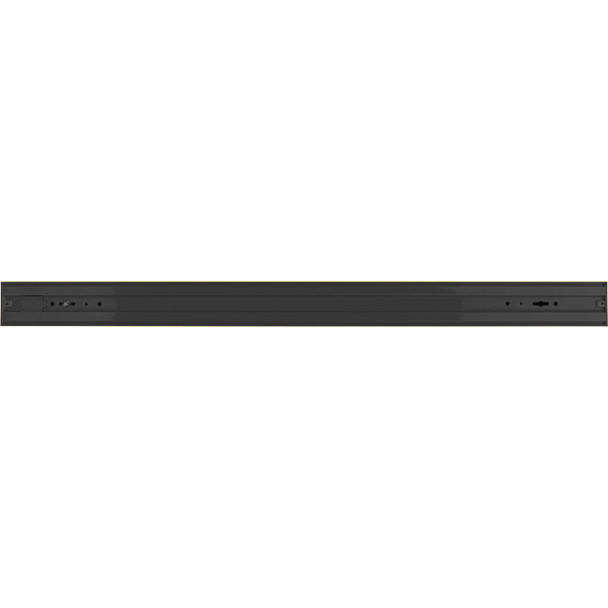

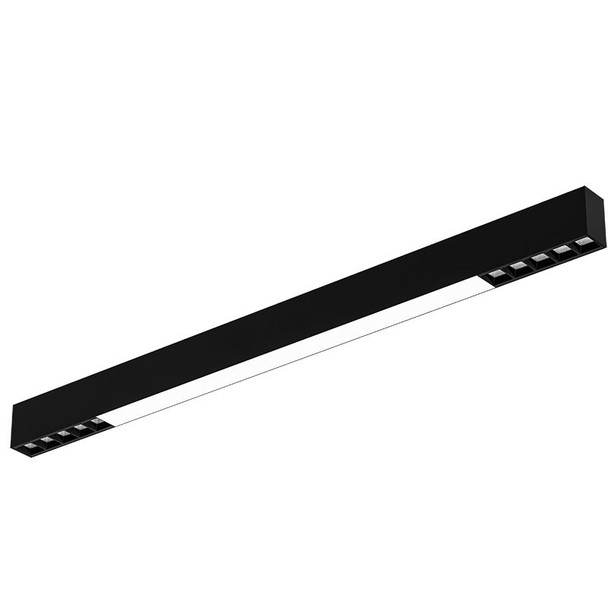

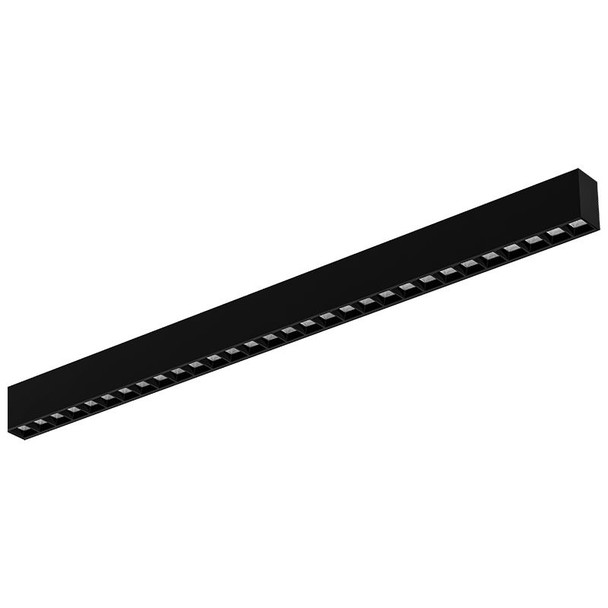

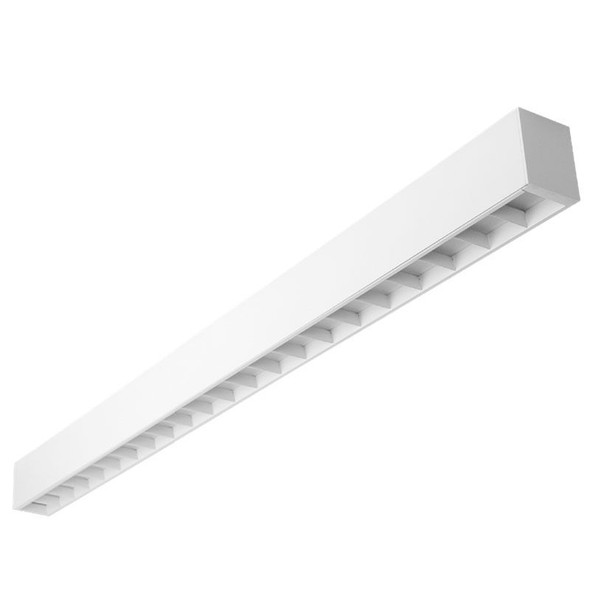

SCXA2 Series 4FT LED Architectural Fixture
The SCXA2 Series 4FT fixture is an exceptional architectural lighting solution, providing selectable color temperatures and superior lumen output, perfect for various modern indoor applications.
Key Features and Benefits
- LED Superior Architectural Lights
- Seamless Linkable Linear Lighting System
- Opal Polycarbonate Lens-Direct (Down) Lighting
- Optional Recessed & Wall Mounting Kits Available
- MCT: Multi Color Temperature (Selectable Switch Inside Fixture)
- Low Profile Modern Design
- Aluminum Housing With Matte Finish
- Custom Colors Available
- Dimmable: 0~10V Dimming
- Beam Angle: 104.8°(H) x 100.5°(V)
- Rated Life: 50,000 Hours
- 5-Year Warranty
Specifications
- Voltage: 120-277VAC 50/60Hz
- Wattage: 20W/30W/40W
- Power Factor: >0.95
- LPW: 100 LM/W
- Total Harmonic Distortion: ≤ 20%
- Total Lumens: 4000LM Max
- Color Temperatures: 3000K/3500K/4000K
- Color Rendering Index: CRI ≥ 80
- IP Rating: IP54
- Operating Temperature: -13°F~104°F
Common Uses
Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and any indoor applications requiring modern lighting solutions.
RESOURCES AND DOWNLOADS
| SKU | WM-SCXA2-4FT-40W-MCTP-CD-BB |
|---|---|
| Weight | 35.00 LBS |
| Total Input Watts | 20W |
| Total Input Watts | 30W |
| Total Input Watts | 40W |
| Lumen Output | 100/W |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 3500K |
| Color Temperature (CCT) | 4000K |
| Listings and Ratings | UL |
