High Output Self Diagnostic Exit/Emergency Combo

The RXEL40 Series LED Emergency Exit Sign features two adjustable heads, single or double face high impact thermoplastic faceplates with snap-in & out chevrons. This exit sign uses LED light bulbs and has a backup battery. Ideal for applications requiring attractive, quick-installation exit signs and low energy consumption.

DESIGN FEATURES

CONSTRUCTION

• Includes single or double face high impact thermoplastic faceplate. Universal snap-in & out chevrons meets all state and local UL924 codes. Also has one blank face.
• Thermoplastic housing w/ flame retardant housing
• Compact, low profile design

ELECTRICAL

• 120/277V AC input, 60Hz
• Operating temperature 50º F to 104ºF
• Battery: Ni-cd Battery, 2pcs of 3.6V 900mAh
• Light source: SMD 2x2W LED, 6000K, 250lms
• Manual test switch and LED indicator
• 90 minutes of illumination in case of power failure
• Estimated 25 year LED lamp life

SELF-DIAGNOSTIC FEATURES

• Monitors battery disconnection, charger failure, lamp failure and transformer fault every 5 seconds without discharging battery or illuminating lamps
• One minute self-test monthly
• 30 minute self-test semi-annually
• 90 minute self-test annually
• Uses dual color LED lamp to indicate lamp, battery and charger status
• Pretested by factory - field adjustment unnecessary
• 6V fire alarm function is integrated with Self-diagnostic function

INSTALLATION

• Universal mounting (wall, side and ceiling)
• Easy, one-person installation

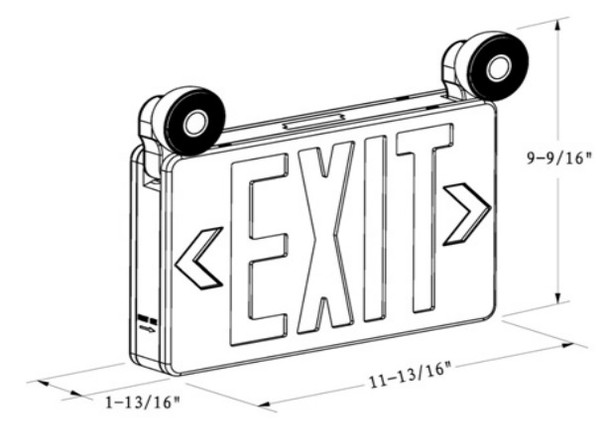

DIMENSIONS (W x D x H)
11-3/4” x 2-7/16” x 9-1/2”

FINISH

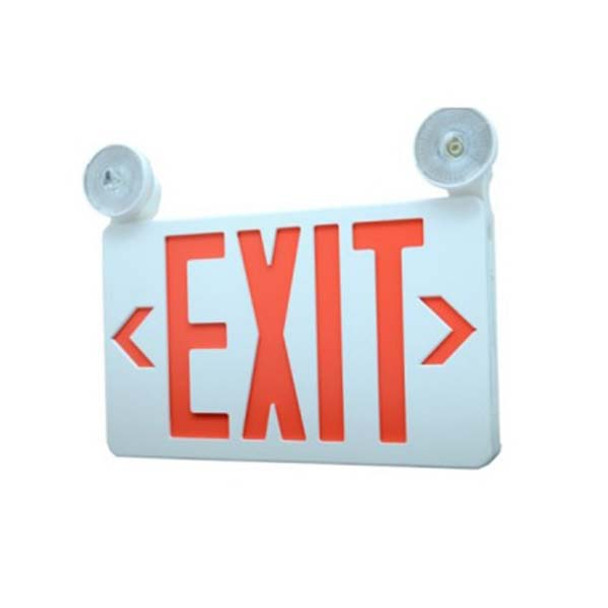

• RW= Red with white housing

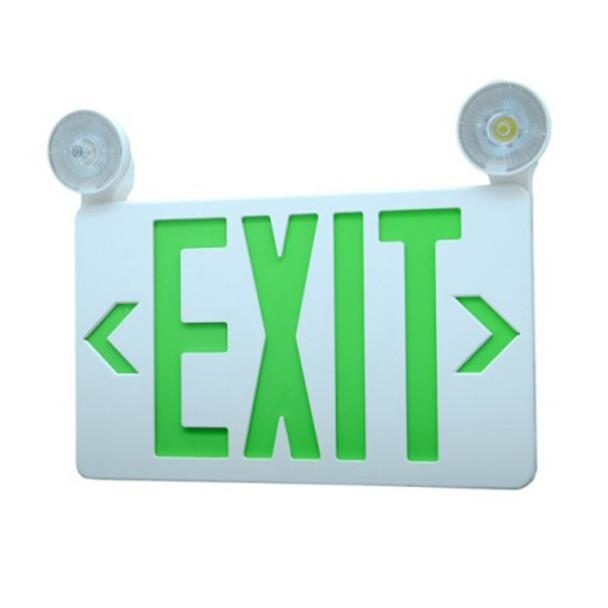

• GW= Green with white housing
