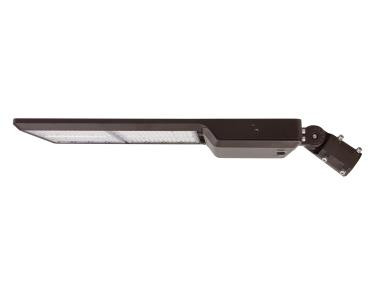

Slim AE Area Fixture with 450W power and 4000K selectable color temperature, offering adjustable lumen outputs up to 63,528 lumens. Perfect for outdoor pole mounting.
Key Features and Benefits
- Controls Ready with the ability to field install a variety of c-Max controls
- Universal 120-277V standard
- 10kA surge protection included in addition to driver surge protection
- ANSI 3G vibration rated
- TAA compliance available - contact Maxlite for details
- Mountings - Slipfitter
Specifications
- Nominal Wattage: 450W
- Lumen Range: 50,270-53,364 lm (380W), 59,845-63,528 lm (450W)
- Distributions: Types IV
- Efficacy: 129-137 lm/W
- CRI: ≥80
- Color Temperature: 4000K Selectable
- Voltage: 120-277V
- Dimming: 0-10V, compatible with field installable c-Max Controls standard
- Surge Protection: 6kV integral to driver + 10kA stand alone standard
- Lumen Maintenance (L70): 100,000+ Hours
- Housing: Die Cast Aluminum with corrosion resistant polyester powder coat
- Lens: Polycarbonate
- Mounting: Slipfitter (2 3/8” OD)
- Operating Temperature: -40°C/-40°F - 40°C/104°F
- Weight: 20.11 lbs (w/ sf), 21.01 lbs (w/ arm)
- EPA (sq ft) - 0° (Horizontal) / 90° (Vertical): 0.60/2.99
- Warranty: 10 Years
Common Uses
Ideal for new and retrofit outdoor projects, including parking lots, roadways, and general area lighting where high efficacy and versatile mounting options are required.
RESOURCES AND DOWNLOADS
| SKU | MX-AE450UT4-W40BKCR |
|---|---|
| Weight | 16.00 LBS |
| Lumen Output | 50,270-53,364 lm (380W), 59,845-63,528 lm (450W) |
| Total Input Watts | 450W |
| Voltage | 120-277V |
| Color Temperature (CCT) | 4000K Selectable |
| Color Rendering Index (CRI) | ≥80 |
