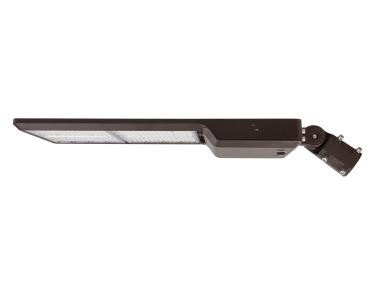

The Slim AE Area Fixture delivers high efficacy in a lightweight design that can be effortlessly installed on new and retrofit outdoor projects. Available in 6 wattage/lumen packages ranging from 80W-450W/10,000 - 63,000 lumens, this family covers virtually every pole mounted need.
Key Features and Benefits
- Controls Ready with the ability to field install a variety of c-Max controls along with upgrades in the future
- CCT 4000K
- Universal 120-277V standard
- 10kA surge protection included in addition to driver surge protection
- ANSI 3G vibration rated
- TAA compliance available
- Mountings - Slipfitter
Specifications
- Nominal Wattage: 450W
- Lumens Range: 59,845-63,528 lm
- Distributions: Type 5
- Efficacy: 129-137 lm/W
- CRI: ≥80
- Color Temperature: 4000K Selectable
- Voltage: 120-277V
- Dimming: 0-10V, compatible with field installable c-Max Controls standard
- Lumen Maintenance (L70): 100,000+ Hours
- Housing: Die Cast Aluminum with corrosion resistant polyester powder coat
- Lens: Polycarbonate
- Mounting: Slipfitter (2 3/8” OD)
- Operating Temperature: -40°C/-40°F - 40°C/104°F
- Weight: 20.11 lbs (w/ sf), 21.01 lbs (w/ arm)
Common Uses
Ideal for outdoor pole/arm-mounted area and roadway lighting applications, including parking lots, streets, and general area lighting.
RESOURCES AND DOWNLOADS
| SKU | MX-AE450UT5-W40BKCR |
|---|---|
| Weight | 16.00 LBS |
| Lumen Output | 59,845-63,528 lm |
| Total Input Watts | 450W |
| Voltage | 120-277V |
| Color Temperature (CCT) | 4000K Selectable |
| Color Rendering Index (CRI) | ≥80 |
