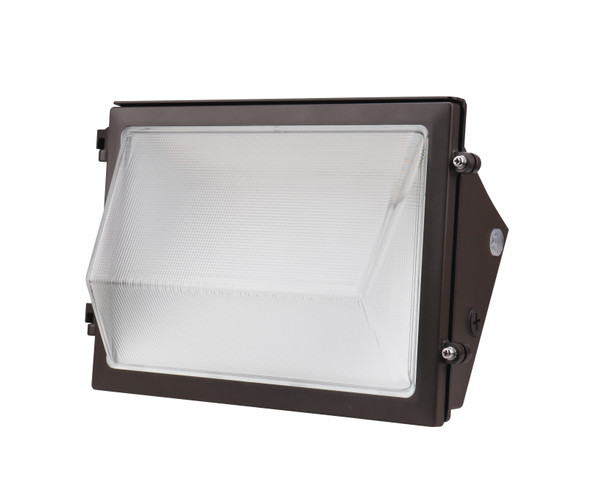

Traditional Wall Pack with selectable color temperature (3000K, 4000K, 5000K) and adjustable lumen outputs (10,800/9450/8100 lm).

Key Features and Benefits

• Traditional style matches the appearance of legacy products while covering the same footprint
• 4 - 1/2” knockouts for versatile mounting
• Wall mount with or without junction box
• Integrated photocell for dusk to dawn operation
• Hinged removable door housing for easier installation
• Glass lens
• PowerSet feature allows for multiple lumen stops out of the box
• FieldCCeT feature provides multiple color temperature settings in one fixture

Specifications

• High efficacy, up to 135 lm/W
• Power-selectable: 80/70/60W
• Field-selectable CCT: 3000/4000/5000K
• CRI: >80
• Rated Life: >54,000 hours
• Input voltage: 120-347V
• 0-10V dimming, dim-to-off
• Surge protection: 4kV
• Power factor: >0.9
• THD: <20%
• Operating temperature: -40°F to 122°F (-40°C to 50°C)
• Bronze powder coated, die-cast aluminum housing
• UL Listed for US & Canada, RoHS compliant, FCC compliant, ICES-005 compliant, IP65 Rated, DesignLights Consortium® Premium Qualified

Common Uses

Industrial Parks, Loading Docks, Utility Sheds, Entryways, Walkways, Storage Areas, Security, Perimeter Lighting
