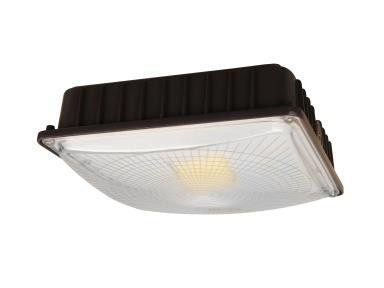

70W Value Canopy/Parking fixture with selectable color temperature (3000K/4000K/5000K) and adjustable lumen outputs. Features a motion sensor and dark bronze finish.
Key Features and Benefits
- Die cast aluminum housing with corrosion-resistant polyester powder coat finish
- Shatter-resistant UL stabilized polycarbonate lens
- Integral 4kV Surge Protection + 10kA stand alone surge protection
- Parking Lens
- Selectable color temperature (3000K/4000K/5000K)
- Standard 5-year warranty
- Motion sensor for enhanced energy efficiency
Specifications
- Lumens Delivered (Parking): 9,560-10,200 lm
- Nominal Efficacy (Parking): 137-146 lm/W
- Input Voltage: 120-277V AC
- Dimming: 0-10V dimming capability
- CRI: ≥70
- Lumen Maintenance (L70): 50,000 hours
- Operating Temperature: -4°F to 104°F (-20°C to 40°C)
- Environment: IP65
- Weight: 6.7 lbs (3 kg)
- Listings: UL, FCC, RoHS
Common Uses
Ideal for parking garages, canopies, and other outdoor lighting applications where energy efficiency and high performance are required.
RESOURCES AND DOWNLOADS
| SKU | MX-CP70UP-CSBMS |
|---|---|
| Weight | 16.00 LBS |
| Lumen Output | 9,560-10,200 |
| Total Input Watts | 70W |
| Voltage | 120-277V |
| Color Temperature (CCT) | Selectable 3000K/4000K/5000K |
| Color Rendering Index (CRI) | ≥70 |
