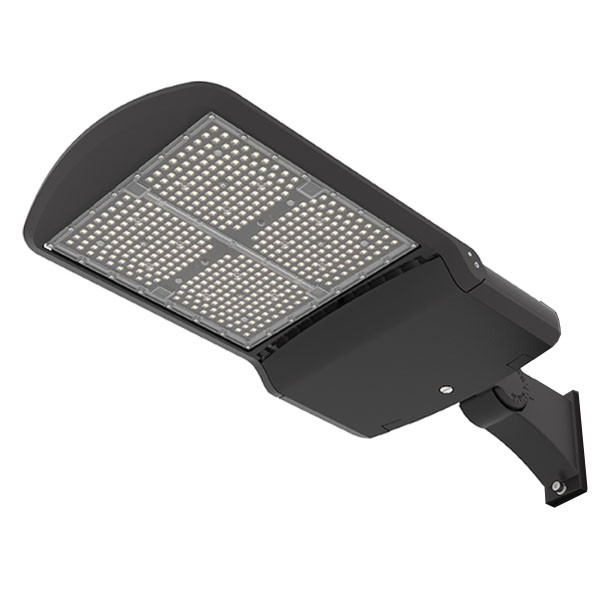

The Viewpoint Area Light series is a versatile and efficient lighting solution for various outdoor environments. With selectable lumen outputs and color temperatures, it is designed to meet diverse lighting needs.
Key Features and Benefits
- Selectable lumen outputs: 14,000 lm, 17,000 lm, and 21,000 lm
- Color temperatures: 4000K and 5000K
- Factory rotatable IES Types 3, 4 and 5 optical distributions
- IP66 rated luminaire for protection against moisture and contaminants
- Durable bronze powder coat finish
- Toolless hinged drop-down driver access
- 0-10V dimming (10-100%) standard
- 5-year warranty
- ETL Listed for wet locations
- Wireless control integrated via 7-Pin Receptacle
Specifications
- Lumen output: 14,000/17,000/21,000 lm selectable
- Voltage: 120-277V
- Color temperature: 4000K/5000K
- CRI: >70
- IP66 rated
- 5-year warranty
Common Uses
Ideal for parking lots, parks, hospitals, shopping centers, roadways, and educational institutions.
RESOURCES AND DOWNLOADS
| SKU | ILP-VAS-14L/17L/21L-U |
|---|---|
| Weight | 15.00 LBS |
| Lumen Output | 14,000/17,000/21,000 lm selectable |
| Total Input Watts | 103.0W, 127.1W, 147.5W |
| Voltage | 120-277V |
| Color Temperature (CCT) | 4000K/5000K |
| Color Rendering Index (CRI) | >70 |
