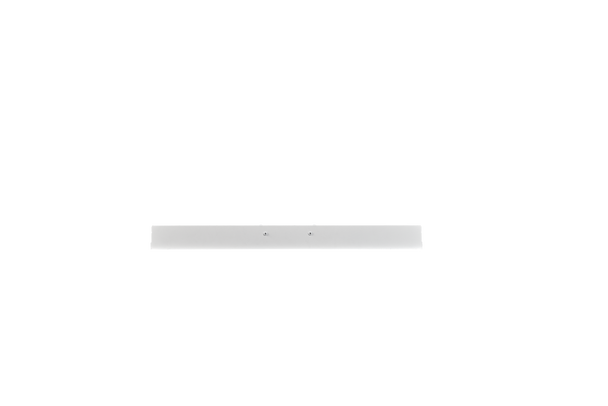

Volumetric Troffer, 2x4, 45/35/26W, 3500/4000/5000K

2x4 Volumetric Troffer with selectable color temperature (3500K, 4000K, 5000K) and adjustable lumen outputs (6300, 4900, 3640 lm).

Key Features and Benefits

• Architectural recessed luminaire featuring Controls Ready
• Flat modern lens with high-quality, non-yellowing PMMA acrylic lens for optimal light uniformity
• Multiple mounting options: recessed, suspended, surface mount
• PowerSet feature allows for multiple lumen stops out of the box
• FieldCCeT feature provides multiple color temperature settings in one fixture

Specifications

• High efficacy, up to 140 lm/W
• Available in PowerSet models: power-selectable 45/35/26W
• Available in FieldCCeT models: field-selectable CCT 35/40/5000K
• CRI: >80
• Estimated L70: 100,000 Hours
• Input voltage: 120-347V
• 0-10V dimming, dim-to-off
• Surge Protection: 2.5 kV
• Power Factor: >0.9
• THD: <20%
• Ambient operating temperature: -40°F to 122°F (-40°C to 50°C)

Common Uses

Campus, Classroom, Hospital, Office, Retail, Schools
