Product Overview

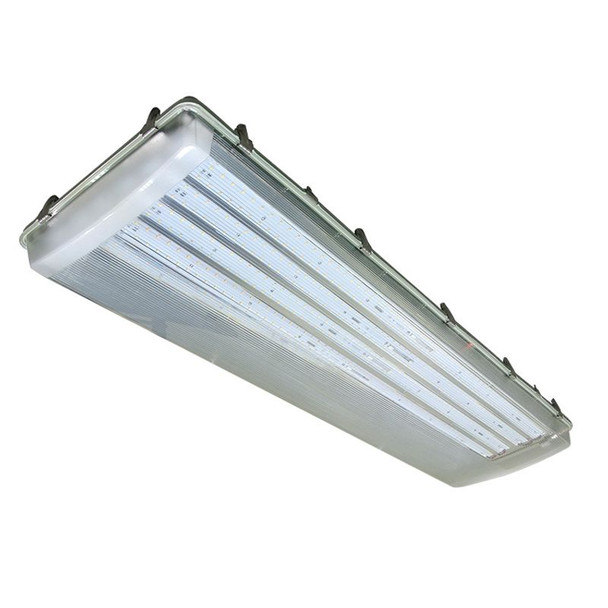

The 4ft. LED Linear Vapor Tight luminaire is specifically engineered for use in challenging environments, such as workshops, garages, canopies, parking garages, cold storage facilities, food processing units, farmyards, and other humid, dusty, and wet locations. This high-performance lighting solution is designed to withstand harsh conditions while delivering exceptional illumination.

Electrical Specifications

• Voltage: 120-277VAC, 50/60Hz
• Wattage Options: 75W, 100W, 150W
• Power Factor: >0.95
• Efficacy: 135 lumens per watt

Housing Specifications

• Constructed with durable polycarbonate, providing high impact resistance
• Includes stainless steel mounting brackets on the back for secure installation
• UV-stabilized polycarbonate diffuser minimizes glare
• Diffuser crystals ensure even light distribution
• 10 stainless steel clips securely seal the luminaire
• Operational temperature range: -22°F to 104°F
• Lifespan: 50,000 hours
• IP Rating: Suitable for wet locations

Dimensions

14.6” (W) x 52.4” (L) x 4.7” (H)

Lighting Specifications

• Dimming Capability: 0-10V Dimmable
• LED Type: SMD Edison 2835
• Lens: Clear Polycarbonate (Optional Opal Lens available)
• Driver: ARCATA/ANTRON
• Total Lumens: 13,500 or 20,250 LM
• Color Temperature: 4000K / 5000K
• Color Rendering Index (CRI): >82

Warranty

Backed by a 5-year warranty, ensuring long-term satisfaction
