Product Overview

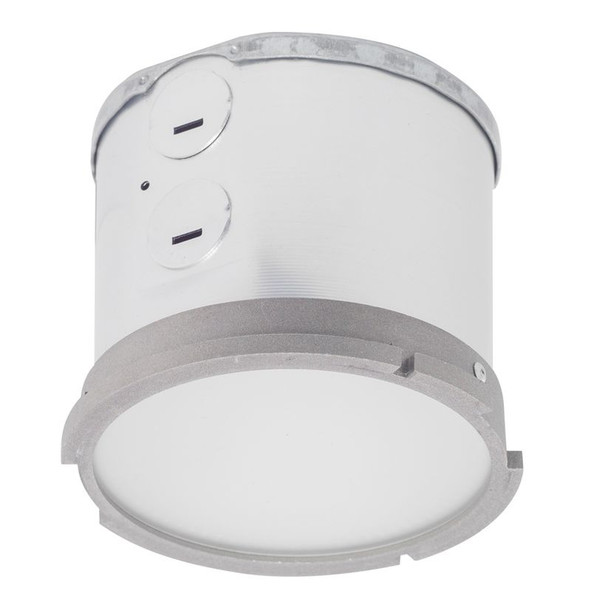

Discover the perfect lighting solution for a variety of environments with our LED Commercial Recessed Light. This versatile lighting fixture is ideal for hotels, offices, retail outlets, restaurants, parking garages, conference rooms, educational facilities, and more. Experience the perfect blend of energy efficiency, reliable performance, and modern design.

Key Features and Benefits

Electrical Specifications

Voltage: 120-277VAC 50/60Hz
Wattage: 15W
Power Factor: >0.90
Efficacy: 80~85LM/W

Lighting Specifications

Dimming: 0~10V Dimmable
Recommended Dimmers: DVTV(LUTRON), IP710(LEVITON)
Total Lumens: 1200~1275LM
Color Temperature: 5000K, 4000K, 3000K
Color Rendering Index: >80

Housing Specifications

8-inch Haze & White Finish TRIM
Mounting Options: Recessed
Temperature Rating: Operates in temperatures up to 113°F
Non IC-Rated
Lifespan: 50,000 hours
Suitable for Damp Locations

RESOURCES AND DOWNLOADS

LED Commercial Recessed Light Spec Sheet

Details

Color Rendering Index (CRI):	>80
Color Temperature (CCT):	3000K\|4000K\|5000K
Country of Origin:	China
Dimming Options:	0-10V
Driver Type:	120-277V
Finish Options:	Haze
Fixture Size:	8 Round"
IP Rating:	Damp Location
Item Height (Inch):	4.3
Item Length (Inch):	3.8
Item Weight (LBS):	0.83
Item Width (Inch):	3.8
L70 Expected Life (hours):	50000
LED Type:	LED
Lens Material:	PC Lens
Light Source:	LED
Listings and Ratings:	UL
Lumen Output:	1200lm\|1245lm\|1275lm\|1600lm\|1640lm\|1720lm
Luminaire Efficacy Rating (LER):	80-85lm/W
Manufacturer's Warranty:	5 YEARS
Operating Temperature:	113°F
Power Factor:	>0.90
Primary Material:	Aluminum
Special Features:	Color Temperature Selectable
THD:	<20%
Total Input Watts:	15W\|20W
Voltage:	120-277V
