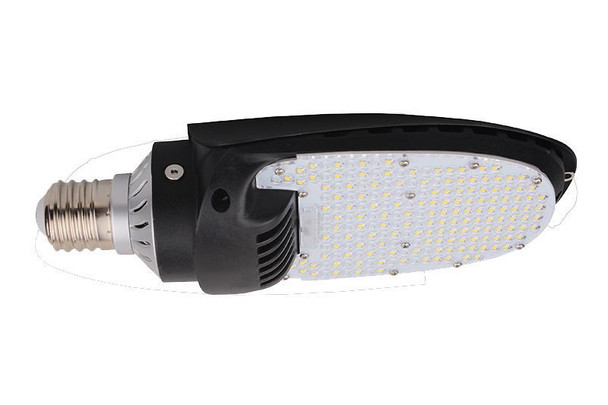

LED Flat HID Retrofit Lamp for Enhanced Lighting Solutions

Upgrade your existing HID high bay, shoebox, flood light, or wall pack fixture with our advanced LED Flat HID Retrofit Lamp. Engineered for optimal performance, it is ideal for retrofitting and can be used in enclosed luminaires.

Electrical Specifications

Voltage: 100~277VAC, 50/60 Hz
Wattage options: 75W, 115W
Power factor: 0.9
Efficacy: 110LM/W

Housing Specifications

Material: Magnesium alloy, Aluminum, Polycarbonate
Color: Black
Easy installation with internal driver
Cooling: Single SUNON fan
Lamp Base: E39
Operating Temperature Range: -4°F to 113°F
IP Rating: IP51, suitable for damp locations

Certifications

UL and DLC certified for reliability and performance.

Lighting Specifications

LED Type: Philips Lumileds Luxeon 3030 2D (1.5W)
Total Lumens: 5940-13570LM
Color Temperature: 5000K
Color Rendering Index: >70
Beam Angle: 90° x 150°

Warranty

Enjoy peace of mind with our 5-year warranty.

Resources and Downloads

LED Flat HID Retrofit Lamp 54W Spec Sheet LED Flat HID Retrofit Lamp 75W Spec Sheet LED Flat HID Retrofit Lamp 115W Spec Sheet

Details

Light Source:	LED
Fixture Size:	Others
Lumen Output:	5,940-13,570
Luminaire Efficacy Rating (LER):	118lm/W
Color Temperature (CCT):	5000K
Color Rendering Index (CRI):	>70
Max Ambient Temp:	-4°F to 113°F
Driver Type:	100~277VAC
Total Input Watts:	54W
Total Input Watts:	75W
Total Input Watts:	115W
Lumen Output:	5940
Voltage:	120-277V
Primary Material:	Aluminum And Polycarbonate
Finish Options:	Black
Power Factor:	>0.9
THD:	<20%
Operating Temperature:	-4°F to 113°F
Beam Angle Options:	90°x150°
L70 Expected Life (hours):	50,000
IP Rating:	Damp Location
LED Type:	Lumileds Luxeon 3030 2D
Lens Material:	Polycarbonate
Manufacturer's Warranty:	5 YEARS
Listings and Ratings:	UL, DLC
Country of Origin:	China
Item Weight (LBS):	1.65
Item Length (Inch):	243
Item Width (Inch):	4.5
Item Height (Inch):	3.2
Lumen Output:	9000
Item Weight (LBS):	2.82
Item Length (Inch):	11.6
Item Width (Inch):	5.4
Item Height (Inch):	3.4
Lumen Output:	13570
Item Weight (LBS):	2.89
