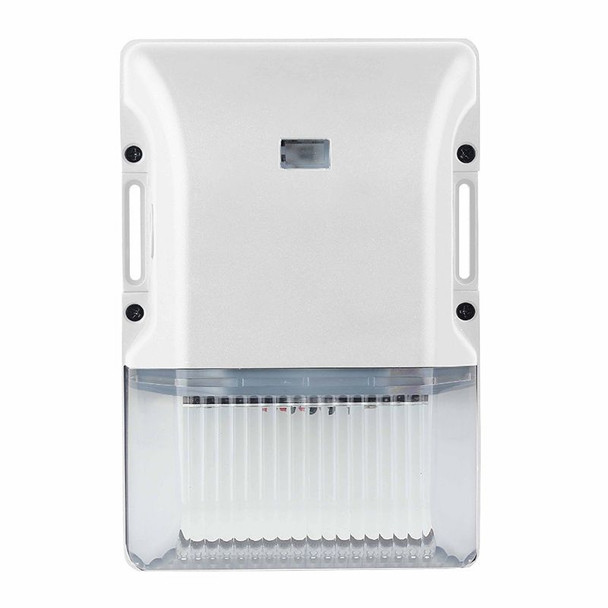

LED Mini Wall Pack - WM-LESW
Product Overview
Discover the WM-LESW LED Mini Wall Pack, a versatile lighting solution perfect for general site illumination. From loading docks and doorways to pathways and parking areas, this wall pack ensures superior lighting performance. Constructed with high-quality materials and up-to-date technical specifications, it's designed to meet your outdoor lighting needs.
Applications
APPLICATIONSIdeal for general site lighting, loading docks, doorways, pathways, and parking areas.
Technical Specifications
- ADC12 Aluminum heat sink with outdoor powder coating for durability.
- Optical Lens: High transmittance PC that is anti-UV and fire resistant.
- Integrated pre-wired photoelectric control, calibrated for 120 volts AC.
- Standard 120V AC, 60Hz electrical configuration.
- Non-cutoff optics designed for optimal light distribution.
- Color Rendering Index (CRI) greater than 80 for vivid color illumination.
- High Power Factor of 95% ensuring efficient energy use.
- Operates efficiently within a temperature range of -40°F to 104°F.
- Long-lasting with a rated life of 70,000 hours.
- Backed by a 7-year warranty for peace of mind.
- IP54 rating, making it suitable for wet locations.
Resources and Downloads
| SKU | WM-LESW |
|---|---|
| Weight | 8.00 LBS |
| Light Source | LED |
| Fixture Size | Other |
| Color Rendering Index (CRI) | > 80 |
| Driver Type | 120V AC, 60Hz |
| Lumen Output | 1,675-2,500 |
| L70 Expected Life (hours) | 70,000 hrs |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 5000K |
| Total Input Watts | 15 |
| Total Input Watts | 15W |
| Lumen Output | 1675 |
| Voltage | 120VAC |
| Color Rendering Index (CRI) | >80 |
| L70 Expected Life (hours) | 70,000 |
| Listings and Ratings | ELT, UL |
| Lumen Output | 1875 |
| Total Input Watts | 20W |
| Lumen Output | 2300 |
| Lumen Output | 2500 |
