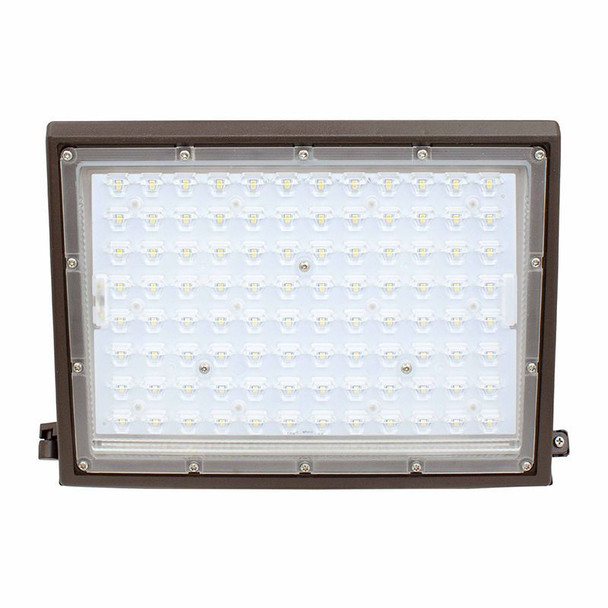

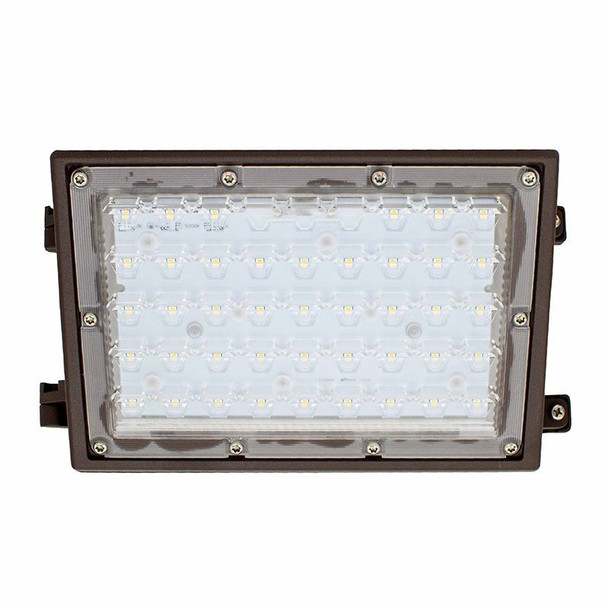

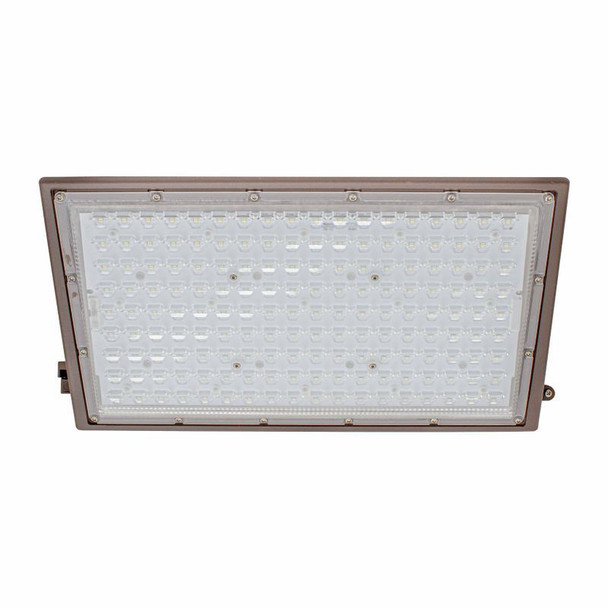

Versatile LED Non-Cutoff Wall Pack 2nd Generation
Ideal for brightening general site lighting, alleys, loading docks, doorways, pathways, and parking areas, the LED Non-Cutoff Wall Pack 2nd Generation combines robust design with energy-efficient performance. Tailored to match the same footprint as traditional HID wall packs, this LED wall pack is perfect for both new installations and upgrading existing fixtures.
ELECTRICAL SPECIFICATIONS
- Voltage: 120~277 VAC / 60 Hz
- Wattage: Available in 28W-120W
- Power factor: 0.95 for consistent performance
- Efficacy: Remarkable 121 LM/W for superior brightness
ROBUST HOUSING FEATURES
- Durable die-cast aluminum housing for longevity
- Powder-coated finish in Dark Bronze to withstand the elements
- Includes comprehensive mounting hardware for easy installation
- Configured with four 1/2” hubs: one at the top, one on each side, and one at the rear
- Wide operating temperature range from -40°F to 104°F
- Lifespan: Impressive 70,000 hours
- IP Rating: IP65 ensures protection against dust and water
LIGHTING SPECIFICATIONS
- Equipped with Philips Lumileds LEDs
- 0-10V dimmable for adjustable brightness
- Available color temperatures: 5000K (daylight), 4000K (cool white), 3000K (warm white)
- Optic Lens: Polycarbonate ensures uniform light distribution
- Color Rendering Index (CRI): >80 for vivid, natural light
CERTIFICATIONS
UL and DLC certified for quality assurance
PEACE OF MIND WARRANTY
Backed by a 7-year warranty for reliability and long-term satisfaction.
RESOURCES AND DOWNLOADS
LED Non-Cutoff Wall Pack 28W Spec SheetLED Non-Cutoff Wall Pack 50W Spec Sheet
| SKU | WM-WML2 |
|---|---|
| Weight | 8.00 LBS |
| Light Source | Compact Fluorescent |
| Fixture Size | Other |
| Color Rendering Index (CRI) | >80 |
| Driver Type | 120~277 VAC /60 Hz |
| Lumen Output | 3,780-16,200lm |
| L70 Expected Life (hours) | 70,000 hrs |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Total Input Watts | 28 |
| Total Input Watts | 50 |
| Total Input Watts | 80 |
| Total Input Watts | 120 |
| Total Input Watts | 28W |
| Lumen Output | 3640 |
| Voltage | 120-277V |
| L70 Expected Life (hours) | 70,000 |
| Listings and Ratings | UL, DLC Premium |
| Lumen Output | 3780 |
| Total Input Watts | 50W |
| Lumen Output | 5500 |
| Lumen Output | 5750 |
| Lumen Output | 6000 |
| Total Input Watts | 48W |
| Lumen Output | 6240 |
| Lumen Output | 6480 |
| Total Input Watts | 80W |
| Lumen Output | 9750 |
| Lumen Output | 10140 |
| Lumen Output | 10530 |
| Total Input Watts | 120W |
| Lumen Output | 16200 |
