Versatile LED Lighting for Residential Use

Illuminate your spaces efficiently with this premium LED luminaire, ideal for general site lighting, residential houses, doorways, pathways, and garages. Engineered to provide optimal lighting, this fixture guarantees longevity and consistency.

Electrical Specifications

Voltage: 120ACV
Wattage: 12W
Power Factor: 0.95
Efficacy: 91LM/W

Housing Specifications

Aluminum housing with powder coating for durability
Operating temperature range: -40°F to 104°F
Lifespan: 50,000 hours
Water and dust resistant with an IP65 rating

Certifications

ETL certified for safety and reliability.

Lighting Specifications

Dimmable with standard LED dimmers (TRIAC)
LED Type: DOB
Total lumens: 1100LM
Color temperature options: 3000K / 4000K
Color rendering index: >80 for accurate color representation

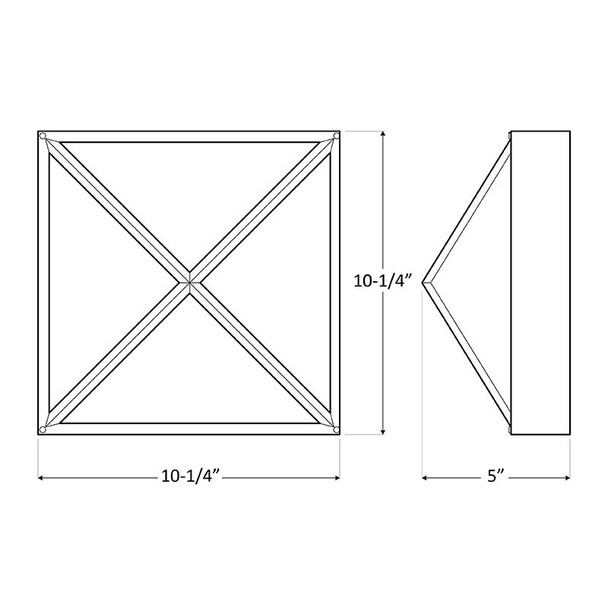

Dimensions

10-1/4"(L) x 10-1/4"(W) x 5"(D)

Warranty

7 years of coverage for peace of mind

RESOURCES AND DOWNLOADS

LED Dimmable Residential Light Spec Sheet

Details

Light Source:	LED
Fixture Size:	Other
Color Rendering Index (CRI):	>80
Driver Type:	120ACV
Lumen Output:	1100 lm
Luminaire Efficacy Rating (LER):	91 lm/W
L70 Expected Life (hours):	50,000 hrs
Color Temperature (CCT):	3000K
Color Temperature (CCT):	4000K
Total Input Watts:	12
Total Input Watts:	12W
Lumen Output:	1100
Voltage:	120V
Primary Material:	Aluminum Housing, Powder Coated
Finish Options:	Bronze
Dimming Options:	TRIAC
Power Factor:	0.95
Operating Temperature:	-4°F to 104°F
L70 Expected Life (hours):	70,000
IP Rating:	IP65
LED Type:	DOB
Lens Material:	Frosted
Manufacturer's Warranty:	7 YEARS
Listings and Ratings:	ETL
Country of Origin:	China
Item Weight (LBS):	4.35
Item Length (Inch):	10.3
Item Width (Inch):	10.3
Item Height (Inch):	5
