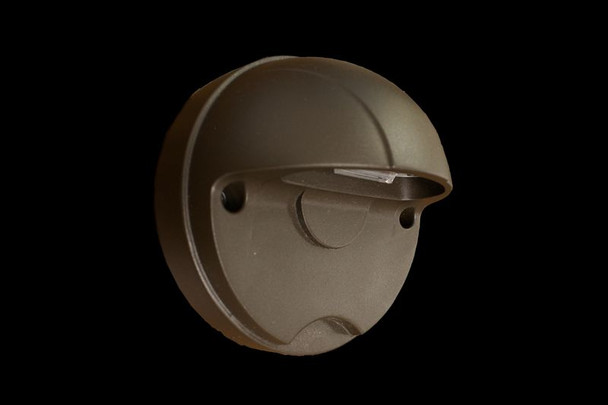

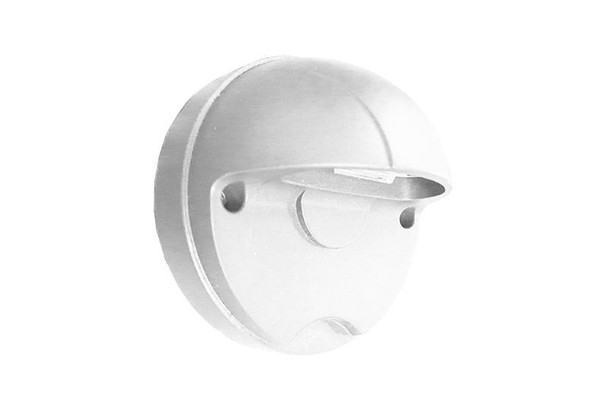

Versatile 6W LED Wall/Step Light for Efficient Outdoor Illumination
Ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas, this energy-efficient 6W LED Wall/Step Light delivers exceptional performance with a focus on safety and durability.
Electrical Specifications
- Voltage: 100-277 VAC, 50/60 Hz
- Wattage: 6 W
- Power factor: 0.95
- Efficacy: 80 LM/W
Housing Specifications
- Durable die-cast aluminum with a powder coat finish (Available in Dark Bronze or White)
- Polycarbonate front housing for enhanced durability
- Vandal resistant design
- Four 1/2” HUBS for wiring convenience
- Operating temperature: -40°F to 104°F
- Long lifespan of up to 70,000 hours
- IP54 rated for superior water and dust resistance
Certifications
UL Certified for safety and reliability
Lighting Specifications
- Prismatic lens for optimal light distribution
- Equipped with Philips Lumileds LEDs
- Total lumens: 480 LM
- Available in color temperatures of 5000K (Daylight) and 3000K (Warm White)
- Color rendering index: >80 for true-to-life color accuracy
- Beam Angle: 110° x 65°
Warranty
Backed by a 7-year warranty for peace of mind
Resources and Downloads
| SKU | WM-WMS-R |
|---|---|
| Weight | 4.00 LBS |
| Light Source | LED |
| Fixture Size | Other |
| Color Rendering Index (CRI) | >80 |
| Driver Type | 100~277 VAC |
| Lumen Output | 630 or 660 |
| Luminaire Efficacy Rating (LER) | 80 lm/W |
| L70 Expected Life (hours) | 70,000 hrs |
| Color Temperature (CCT) | 5000K |
| Color Temperature (CCT) | 3000K |
| Total Input Watts | 6 |
| Total Input Watts | 6W |
| Lumen Output | 630 |
| Voltage | 120VAC |
| L70 Expected Life (hours) | 70,000 |
| Listings and Ratings | UL |
| Lumen Output | 660 |
