Westgate Signature 6" LED Recessed Trim - WM-RDL6-MCT5-WP
The Westgate Signature series 6" LED recessed trim, WM-RDL6-MCT5-WP, is your ultimate solution for versatile lighting. With adjustable lumen outputs up to 1400LM and selectable color temperature settings ranging from warm 2700K to daylight 5000K, this recessed LED lighting is ideal for both new and retrofit residential and commercial constructions.
Key Features and Benefits

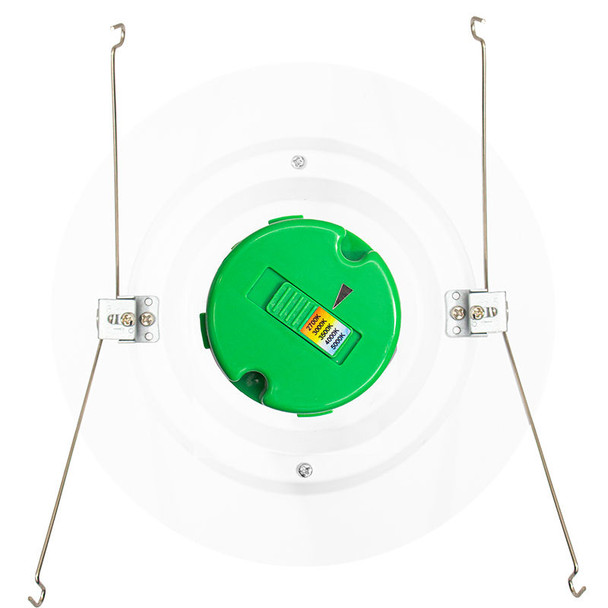

- Selectable Color Temperature: Easily switch between 2700K, 3000K, 3500K, 4000K, and 5000K to match your lighting needs.
- Adjustable Lumen Outputs: Provides up to 1400 lumens to ensure bright and effective illumination.
- High Efficacy: Delivers 81 lumens per watt for efficient performance.
- Long Lifespan: Rated for up to 35,000 hours of reliable lighting.
- Superior Color Rendering: CRI ≥ 90 for excellent color accuracy.
- Dimmable: Compatible with TRIAC dimming systems for customizable brightness.
- Wet Location Rated: Safe for use in areas with moisture.
- Warranty: Comes with a 5-year warranty for peace of mind.
Specifications
- Voltage: 120V AC
- Output Voltage: 36VDC
- Power Factor: >0.90
- Wattage: 14W
- Total Harmonic Distortion: ≤15%
- LED: Epistar Chip (COB) and Driver
- Optics: White Translucent Acrylic Lens
- Maximum Ambient Temperature: 104°F
- Rated Life: 50,000 hours
- Dimensions: 7 1/2" x 3 2/5"
- Adapter: Includes 8" Medium Base E-26 Screw-in Adapter
Common Uses
This LED recessed trim is perfect for closets, storage areas, attics, corridors, or general lighting in both residential and commercial applications.
Resources and Downloads
| SKU | WM-RDL6-MCT5-WP |
|---|---|
| Weight | 1.00 LBS |
| Total Input Watts | 14W |
| Lumen Output | 1140 |
| Color Temperature (CCT) | 2700K |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 3500K |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Voltage | 120VAC |
| Color Rendering Index (CRI) | 90 |
| L70 Expected Life (hours) | 50,000 |
