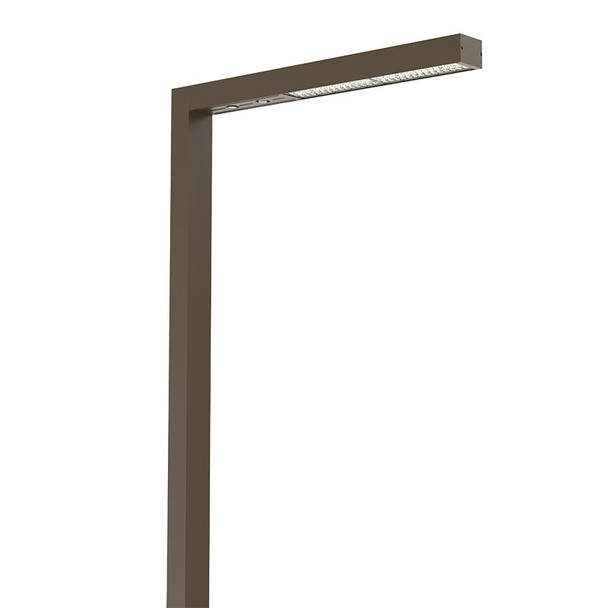

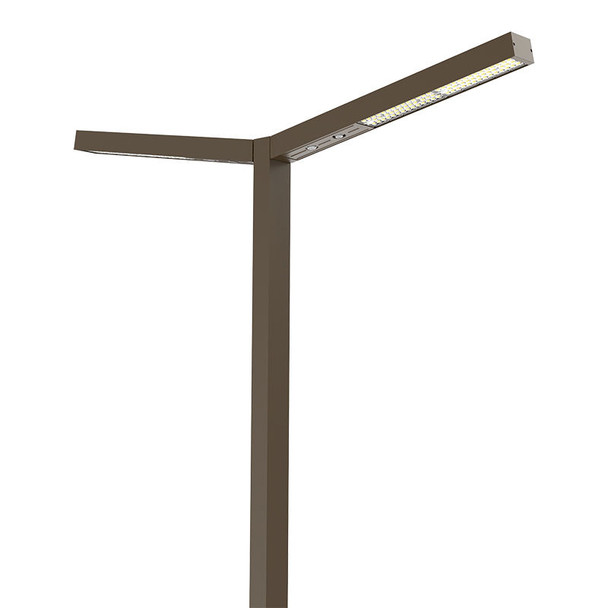

The Westgate LFXU Series Urban Area and Roadway Light is a versatile LED fixture designed for 4-inch poles, ideal for streets, parking lots, plazas, and public spaces. With selectable wattage and color temperature, this fixture delivers reliable, energy-efficient lighting with advanced features for modern outdoor environments.

Key Features and Benefits

• Selectable wattage (90W, 100W, 150W) and color temperature (3000K, 4000K, 5000K) for tailored lighting
• High efficacy up to 150 lm/W and maximum output of 22,500 lumens
• Photocell ready for automatic dusk-to-dawn operation
• 0-10V dimming for flexible control
• Durable AL1060 aluminum housing with outdoor powder coating
• IP66 rated for wet locations and harsh weather
• Type V distribution for wide, even coverage
• 70,000-hour rated lifespan and 7-year warranty
• 10KV surge protection and sensor-ready socket for motion sensor upgrades

Specifications

• Wattage: 90W | 100W | 150W (selectable)
• Lumens: 13,550lm | 15,000lm | 22,500lm
• Color Temperature: 3000K | 4000K | 5000K (selectable)
• Voltage: 100-277V AC, 50/60Hz
• CRI: >70
• Dimensions: 39.17"(W) x 2.95"(D) x 3.94"(H)
• Beam Angle: Type V (150° x 150°)
• Operating Temp: -40°F to 104°F
• IP66, EPA: 3.25 sq. ft.

Common Uses

Perfect for urban streets, residential roads, parking lots, plazas, parks, and public outdoor areas where reliable, efficient, and customizable lighting is essential.
