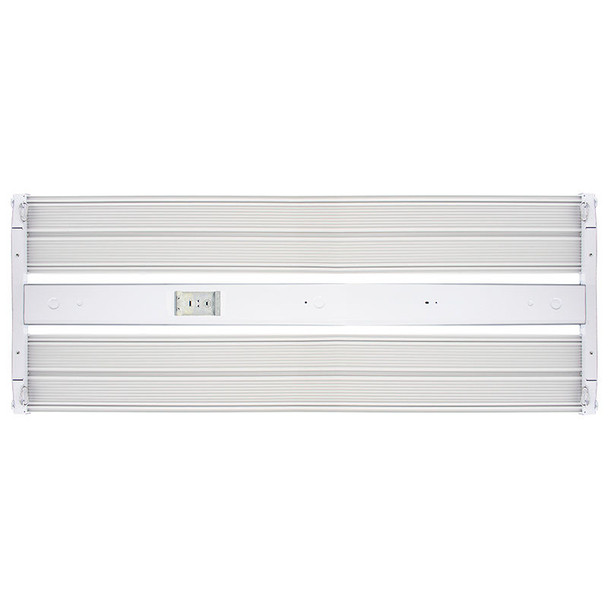

Introducing the Power Adjustable 4th Generation Linear High Bay from the LLHB4 Series, a significant addition to the industrial lighting lineup. This fixture is designed for high efficiency and unparalleled quality, making it ideal for large indoor spaces.

Key Features and Benefits

• High-quality LED chips for excellent efficiency and heat dissipation.
• Polycarbonate lens with high flame retardant properties.
• 50,000 hours rated life and a 5-year warranty.
• Multi-power capability with a switch on the driver.
• Voltage compatibility of 480V AC/50~60 Hz.
• Dimmable with 0~10V dimming capability.
• Pre-installed single-pin audio jack socket for motion sensors.
• Surge protector and steel housing with 24-gauge thickness.
• Wide beam angle and color rendering index of >80.
• Available in color temperatures of 4000K and 5000K.

Specifications

• Wattage: 150W
• Total Lumens: 23250LM
• Efficacy: 155 LPW
• Operating Temperature: -4°F ~ 131°F
• Suitable for damp locations.

Common Uses

Ideal for replacement of conventional lighting systems such as HID and fluorescent. Typical applications include manufacturing, warehousing, grocery stores, gymnasiums, and other large indoor spaces with mounting heights from 10ft to 40ft. The fixture can also be surface mounted.
