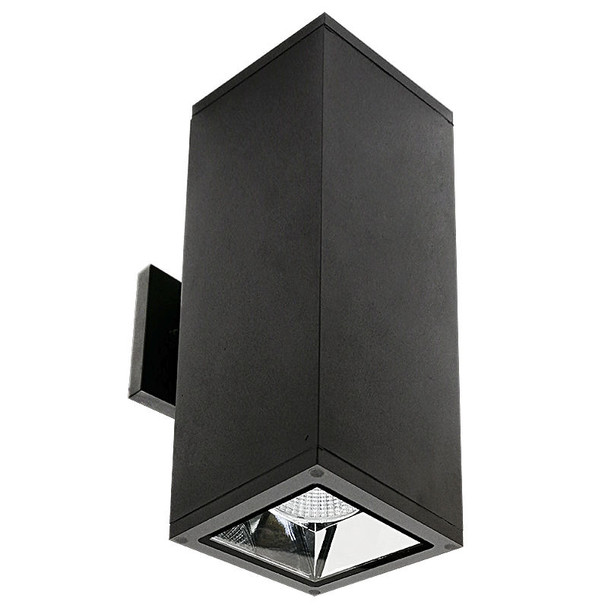

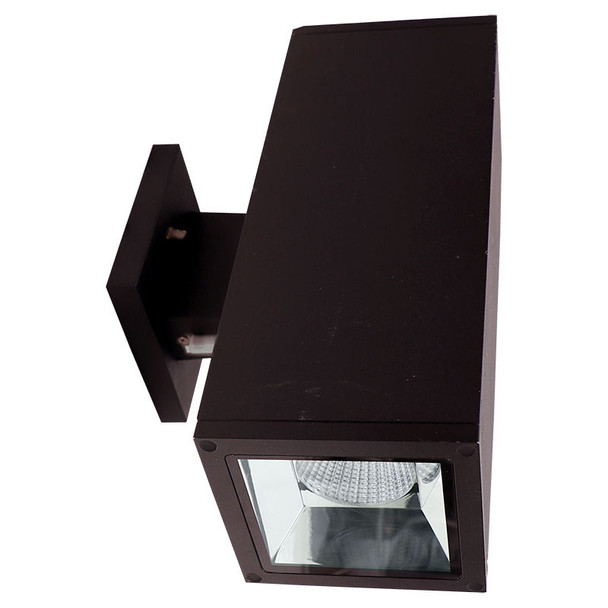

WMCS5 Series 5-Inch Square LED 40 Watt Cylinder Light - CCT Adjustable

SKU: WM-WMCS5-UDL-MCT
$206.78
$177.74
You Save: $29.04

Quick Overview

Compact 12" UP/Down light with selectable color temperature (3000K/4000K/5000K) and adjustable lumen output of 1920LM. Ideal for outdoor settings.

Adding to cart… The item has been added

Frequently Bought Together

WMCS5 Series 5-Inch Square LED 40 Watt Cylinder Light
(Inc. Tax)
(Ex. Tax)

Enter quantity and select options before adding to cart.

Compact 12" UP/Down Light with Selectable Color Temperature and Adjustable Lumen Output

Illuminate your outdoor spaces with the versatile and efficient Compact 12-inch Up/Down Light. Designed to deliver optimal performance and flexibility, this lighting solution offers selectable color temperatures (3000K, 4000K, 5000K) and an adjustable lumen output of 1920LM, ensuring the perfect ambiance for any environment.

Key Features and Benefits

  • Dual Function Dimming: Compatible with Triac dimming at 120V and 0-10V dimming at 120-277V, providing convenient lighting control.
  • Multi CCT: Selectable switch located at the bottom of the arm, protected by a silicon cover to ensure waterproofing.
  • High Efficacy: Delivers an impressive 80 lumens per watt (LPW).
  • Long Lifespan: Rated for an extensive life of 70,000 hours, reducing the need for frequent replacements.
  • IP65 Rating: Suitable for wet locations, offering durability and reliability in various outdoor settings.
  • Robust Construction: Features a die-cast aluminum and glass housing for enhanced durability.
  • Variety of Finishes: Available in Black, Bronze, Brushed Nickel, and White to complement any decor.

Specifications

  • Voltage: 120-277V AC, ensuring compatibility with a wide range of electrical systems.
  • Power Factor: Greater than 0.95, signifying energy efficiency.
  • Wattage: 40W, providing powerful illumination.
  • Efficacy: 80 LPW, maximizing light output relative to energy consumption.
  • THD: Less than 20%, ensuring minimal harmonic distortion.
  • Total Lumens: 1920LM, delivering bright and clear lighting.
  • Color Rendering Index (CRI): CRI ≥ 80, offering vibrant and true color rendering.
  • Beam Angle: 45 degrees on each side, providing wide and balanced light distribution.
  • Maximum Ambient Temperature: Capable of operating in temperatures ranging from -68°F to 104°F.

Common Uses

Perfect for general site lighting, walkways, stairways, alleys, loading docks, doorways, pathways, and parking areas, this fixture enhances security and visibility in various outdoor applications.

RESOURCES AND DOWNLOADS

WMCS5 Outdoor Up/Down Light Spec Sheet

SKU WM-WMCS5-UDL-MCT
Weight 10.00 LBS
Lumen Output 1920LM
Total Input Watts 40W
Voltage 120-277V AC
Color Temperature (CCT) 3000K/4000K/5000K
Color Rendering Index (CRI) CRI ≥ 80
