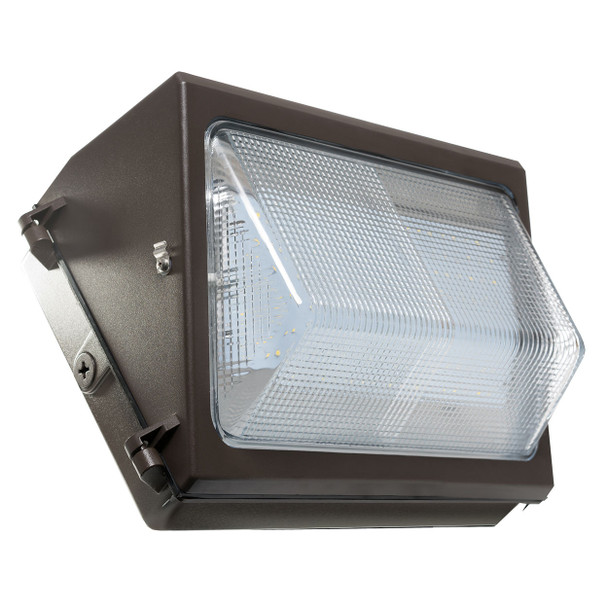

An Enhanced Lighting Solution for Outdoor Spaces

The WML-HL Series from Westgate Manufacturing presents a superior LED outdoor lighting solution, designed to meet the needs of various settings. This 100W model with a warm 3000K color temperature emits an impressive 14800 lumens, ensuring top-notch performance and energy efficiency.

Key Features and Benefits

• Prismatic Borosilicate Glass Lens: Offers optimal light diffusion and minimal glare.
• High Efficacy of 148 LPW: Ensures energy-efficient performance.
• Durable Construction: Built with die-cast aluminum and a dark bronze powder coat finish for longevity.
• 0-10V Dimming: Provides flexibility in light intensity control.
• 7-Year Warranty: Guarantees long-term reliability and peace of mind.
• LED Optimization: Specifically designed for LED usage for better performance.
• Traditional Design Footprint: Similar in design footprint as traditional HID wall packs, making replacements hassle-free.

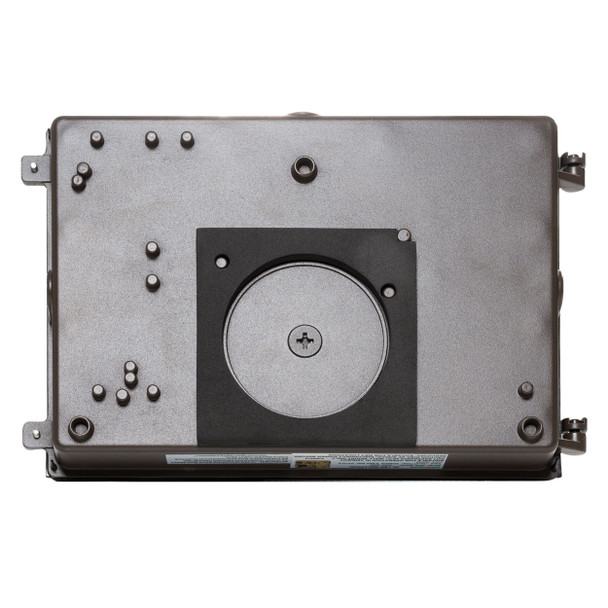

• Multiple Hubs for Easy Installation: Equipped with four 1/2” hubs—one on the top, one on each side, and one on the rear.
• Wall Mounting: Designed for easy wall mounting installations.
• Wide Temperature Range: Operates efficiently in temperatures from -4°F to 104°F.
• Long Lifespan: A robust 70,000-hour operational life.
• IP65 Rating: Suitable for wet locations, providing versatility in various outdoor environments.

Technical Specifications

• Input Wattage: 100W
• Input Voltage: 120-277VAC 50/60Hz
• Input Current: 0.52A
• Power Factor: >0.95
• Total Lumens: 14800LM
• Color Temperature: 3000K
• CRI: >80
• BUG Rating: B2-U5-G5

Common Uses

Perfect for general site lighting, alleys, loading docks, doorways, pathways, and parking areas. This LED wall pack is ideal for replacing existing HID wall packs and is compatible with photocell usage for seamless operation.
