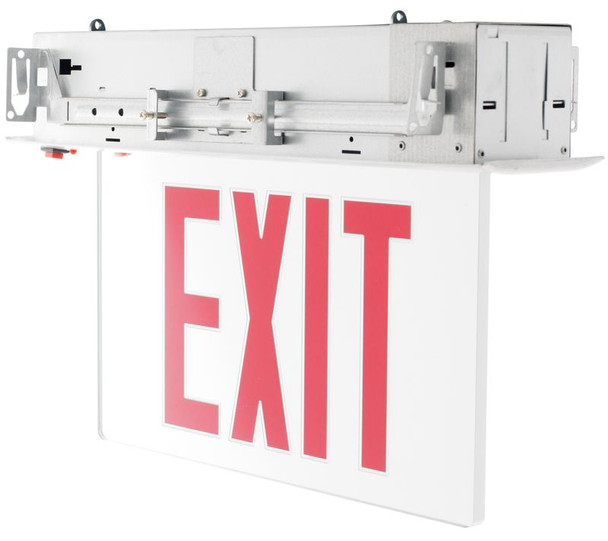

XTR Series Recessed Edgelit Exit Sign - Red & Green Options
Illuminate your emergency exits with the XTR series recessed edgelit exit sign. Equipped with a stylish mirror faceplate, this exit sign offers options in both red (4.5W) and green (4.8W) finishes. Designed for efficiency, it operates across a universal voltage range of 120-277V and features an energy-efficient LED panel, backed by a 3-year warranty.
ELECTRICAL SPECIFICATIONS
- Dual voltage: 120-277V
- Wattage Options: 4.5W (Red), 4.8W (Green)
HOUSING SPECIFICATIONS
- Constructed from extruded aluminum with a recessed canopy
- Available with single or double faceplates using Mylar insert
- Versatile arrow direction: Left or Right
- Low-profile, compact design
- Includes all necessary mounting accessories
- Adjustable 24" bar hangers compatible with T-bar ceilings
- Operational within temperature ranges: 68°F-122°F
- Suitable for damp locations (32°F to 122°F)
TECHNICAL SPECIFICATIONS
- Solid-state electronics with integrated charger board
- Equipped with push-to-test switch
- Premium high-output, ultra-bright LEDs
- 90-minute emergency battery backup with push-style test switch and red indicator light
- Powered by a 4.8 V rechargeable Ni-Cad battery
WARRANTY
- Complies with UL924, NFPA life safety code, Local and State codes, NEC, OSHA
- 3 years warranty
RESOURCES AND DOWNLOADS
| SKU | WM-XTR-2 |
|---|---|
| Weight | 10.00 LBS |
| Light Source | LED |
| Fixture Size | Other |
| Driver Type | 120V/277V |
| Total Input Watts | 4.5W |
| Total Input Watts | 4.8W |
| Voltage | 120-277V |
| Listings and Ratings | UL |
